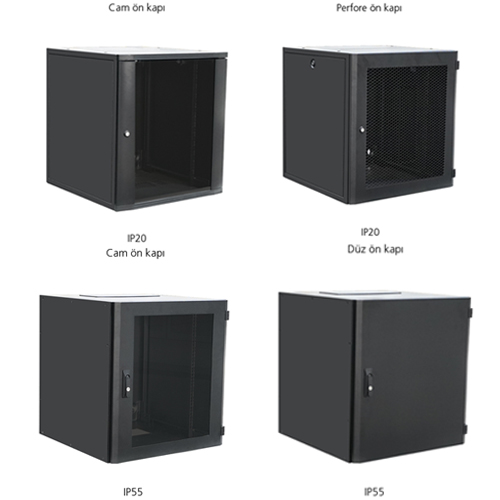

KM Series - Wall-Mount Type Datacom Rack Cabinets

KabinPLUS KM series wall mount type rack cabinets are designed to provide features that may be needed in the data-communication infrastructures.

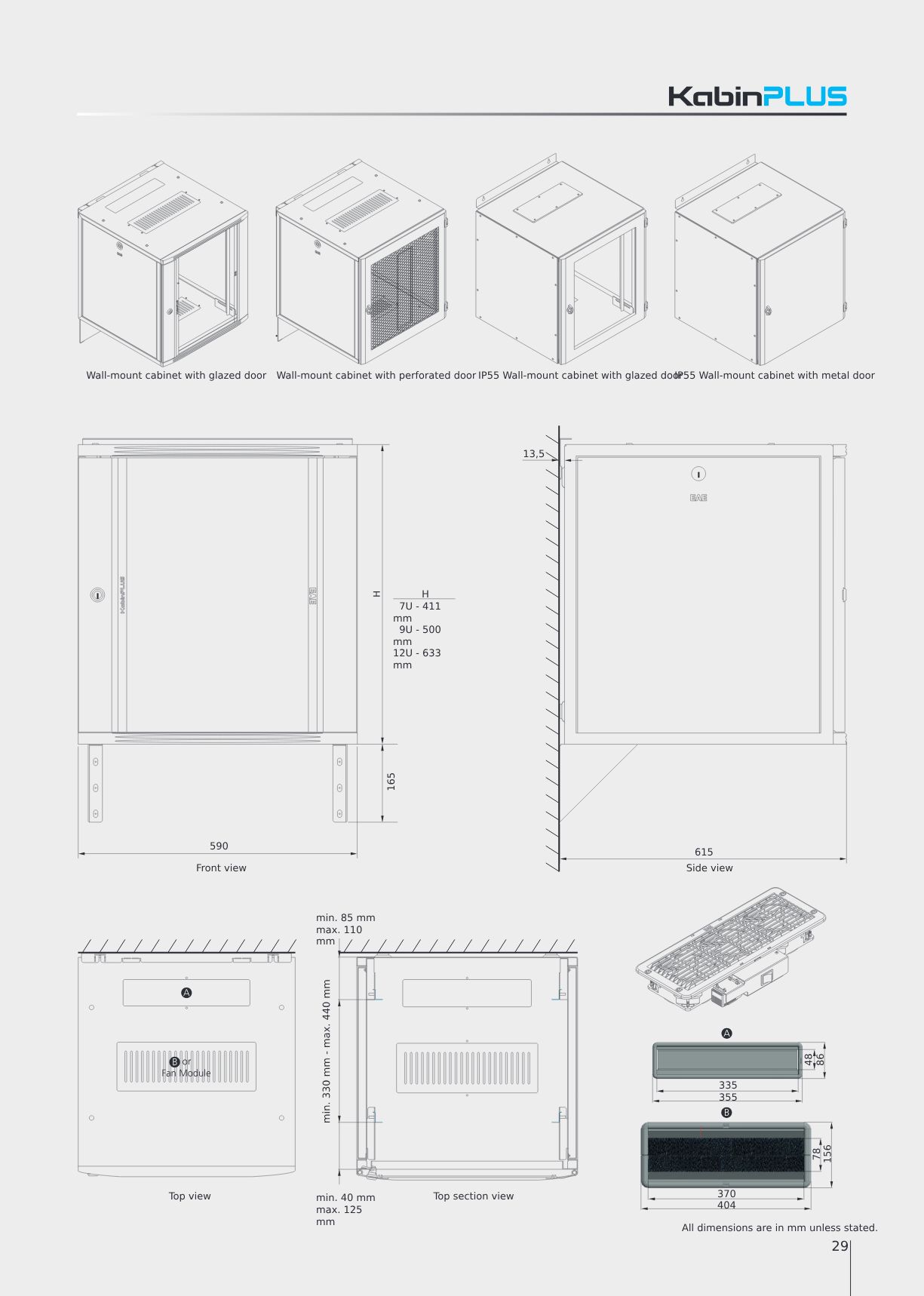

General Technicial SpecificationsDimensionsCatalog CertificatesOther Documents

Wall-Mount Type Datacom Cabinets

• Delivered assembled, ready to use

• Mounting bracket enables wall-mounting by a single person

• Single key type for door and side panels

• Impact resistant packaging

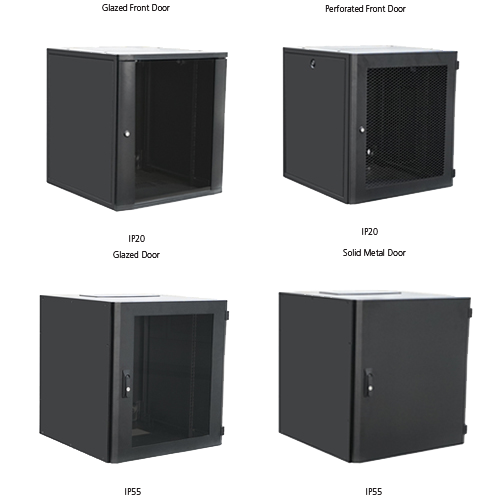

• 85% perforated door option

• Standard heights; 7U, 9U, 12U, 16U, 20U

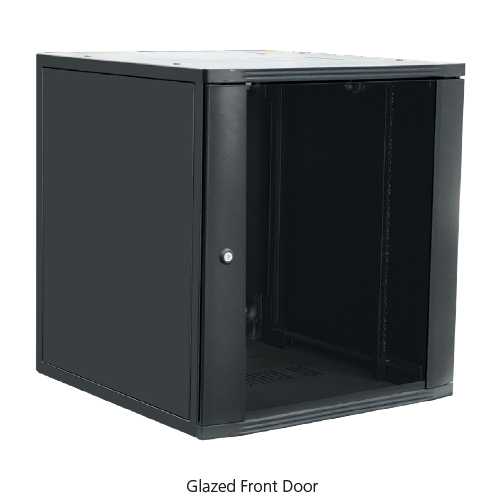

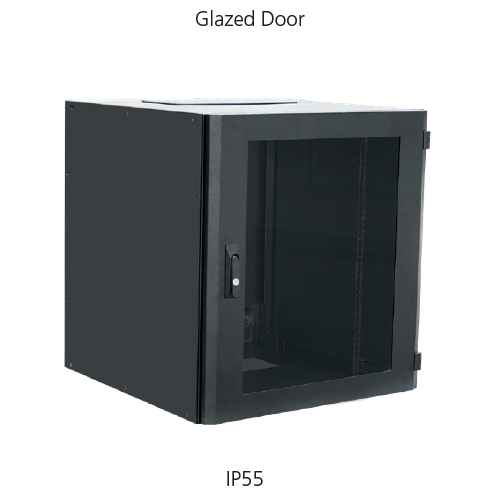

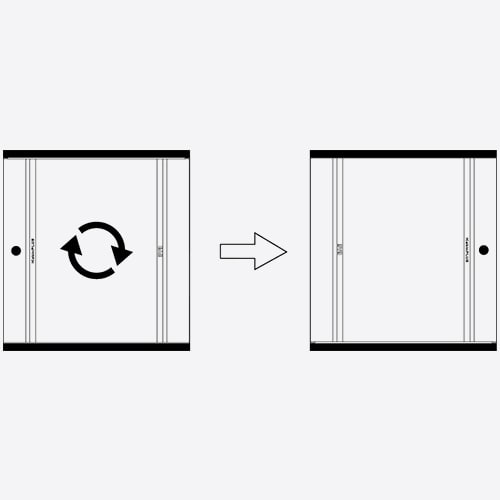

Toolless Reversible Glazed Door

• Easy removal and replacement of doors with spring hinge pin

• Doors have no removable parts like pins that can be lost during removal

• Secure design only allows removal of the door when the door is unlocked and open

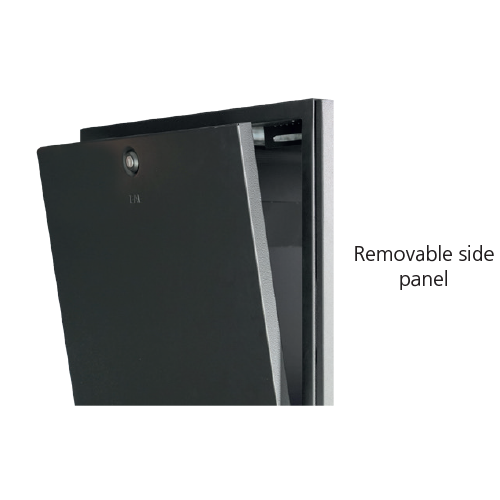

Removable Side Panels

• Side panels have keyed locks and can be removed for allowing easy access during installation or maintenance.

• Grounding of side panels is ensured automatically by grounding clip attached on the panel so that need for dedicated grounding conductor is eliminated.

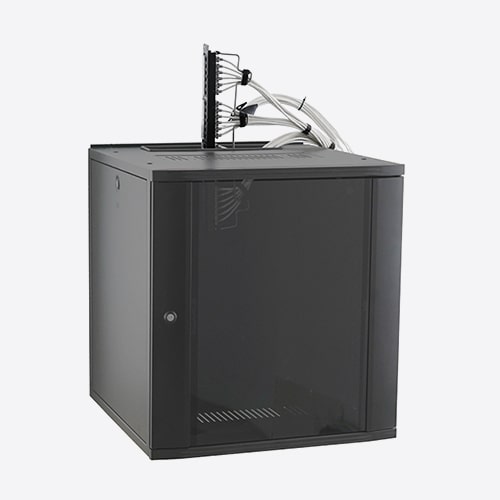

Simple Cable Entry

• Cable entry at top is pre-cut and equipped with cable entry accessory. Symmetrical design allows cable entry from bottom by simply turning the cabinet around.

• Additional cable entry knockouts existing on opposite side and at rear can be used if needed.

• Plastic cable entry accessories prevent damage to the cables entering the entry opening at the edges and can be equipped with brushes.

• Dimensions of cable entry accessory allows 1U patch panel pass through.

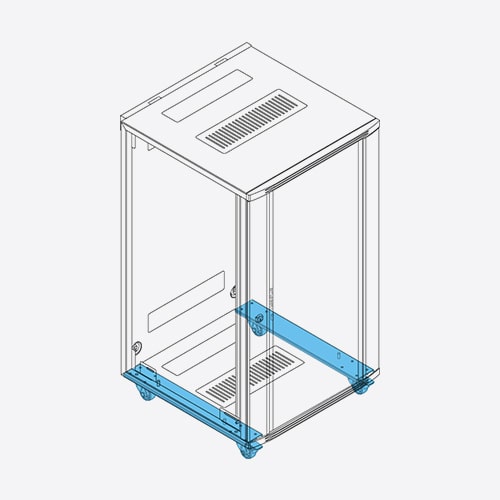

Mobile Applications

• Castor set accessory consist of four castors can be fixed at the bottom for convenience in mobile applications.

• Knockouts at the rear of the cabinet can be equipped with additional cable entry grommets when needed.

Ventilation

• Ventilation openings on top and at bottom of the cabinet enables natural ventilation.

• When forced ventilation is required, fan module with fan and thermostat can be used.

• Fan module can easly be installed on top and/or bottom of the cabinet after punching-out the ventilation knockout.

• Fan module consists of plastic shutters and carrier body. Together with fans and thermostat it can be fixed onto the cabinet from outside.

• The body of fan module is made of plastic material to prevent unwanted noise caused by vibration of fans.

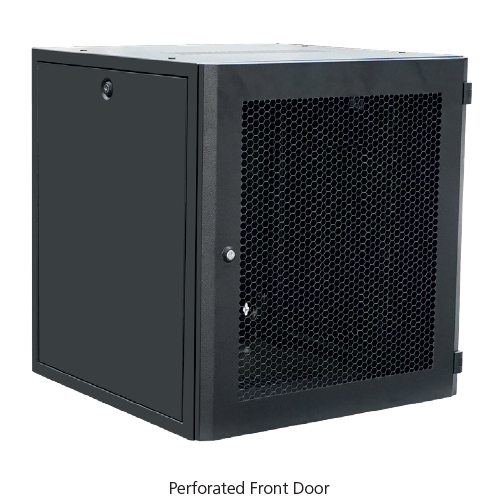

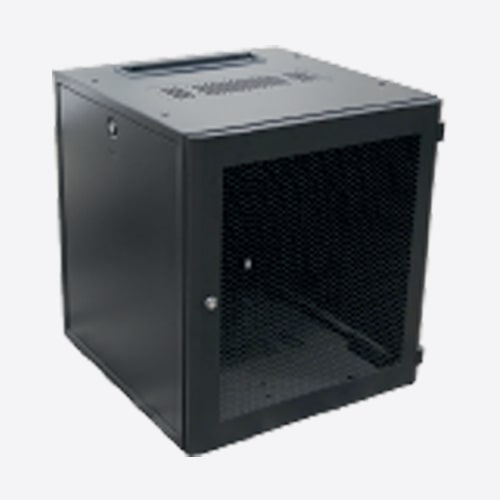

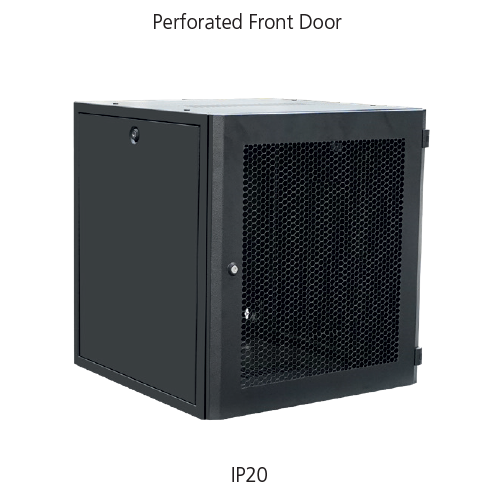

Perforated Front Door

When more ventilation is necessary perforated front door can be used.

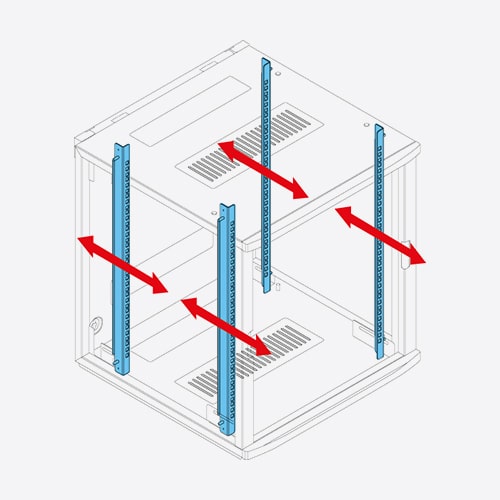

Mounting Rails

• 19 inch mounting rails can easily be moved backwards if more space at the front of the cabinet is needed.

• Additional 19 inch mounting rails can be used at the back side of the cabinet.

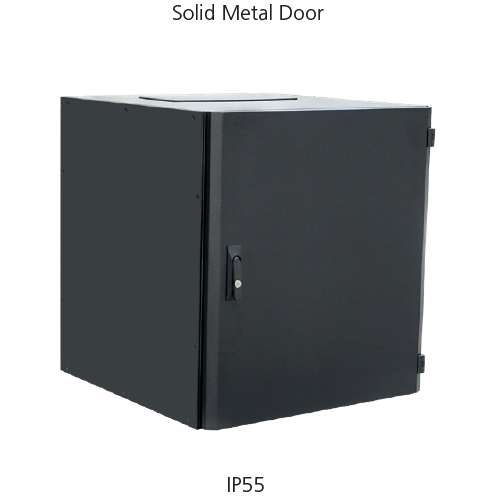

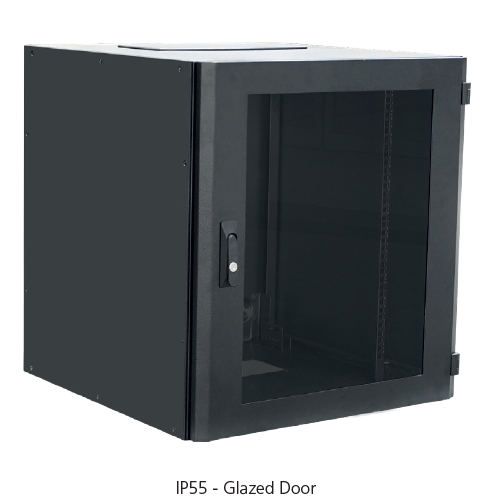

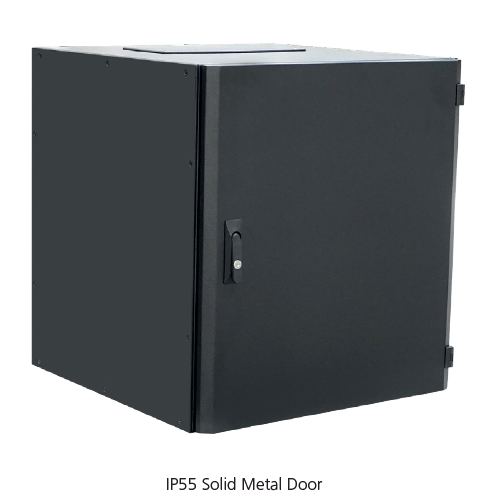

IP55 Dust and Water Resistance

Where high dust and water resistance is required IP55 models can be used.

Features

Standard Features

Ready-to-use wall-mount cabinet in a single package
Symmetrically designed body made from welded sheet steelRAL 9005 black epoxy polyester powder painted
Pair of depth-adjustable mounting rails compliant with EN 60297-3-100 and EIA-310 for mounting 19 inch equipment
Toolless removable security glass door with spring hinge pin and key lock - key nr.333
Lockable (key no.333) and removable side panels with selfgrounding metal clips
Knockouts at bottom and top of the cabinet suitable for fan module installation
Cable entry accessory fixed at opening on top
IP20 (Ø12,5 mm) ingress protection according to EN 60529
IK08 (5 joules) impact protection according to EN 62262
3 kg/U -maximum 70kg- static load carrying capacity according to EN 61587-1 standard
Mounting bracket for fixing on wall
Unless otherwise stated standard packaging is used.

Cable entry accessory

Additional mounting rail set

Shelf

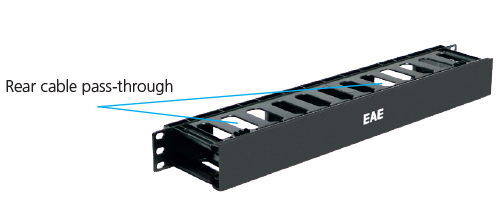

Horizontal cable manager with cover, plastic, 1U or 2U

Plastik kapaklı yatay kablo düzenleyici 1U veya 2U

Most Preffered Accessories

Fan; module
1, 2 or 3 fan alternatives
- 155m3/h flow per fan
- Power input 230V - 50 Hz AC
- IEC14 socket with 1,5m cord
- Thermostate 0° - 55°C
- Illuminated ON/OFF switch
