PanelTemp Temperature Rise Calculation Software

PanelTemp , is an engineering software designed to simplify temperature rise calculations in low voltage switchboards, ensuring a quick and easy way to check design compliance in accordance with IEC standards.

To calculate temperature rise in switchboards, it's not sufficient to simply know the power losses of the devices used within the switchboard. Factors such as the panel's location, ambient temperature, and altitude are also significant determinants. In other words, these calculations involve considerable complexity.

PanelTemp, developed by EAE Elektroteknik, is a software tool designed to perform IEC-compliant temperature rise calculations for low-voltage switchboards, taking all relevant factors into account. With PanelTemp, users can efficiently determine the suitability of their electrical switchboard designs by calculating internal temperature rise and generating reports. It also enables users to implement design changes if required.

With PanelTemp:

This software is developed in accordance with the rules and conditions specified in the IEC TR 60890:2022 standard.

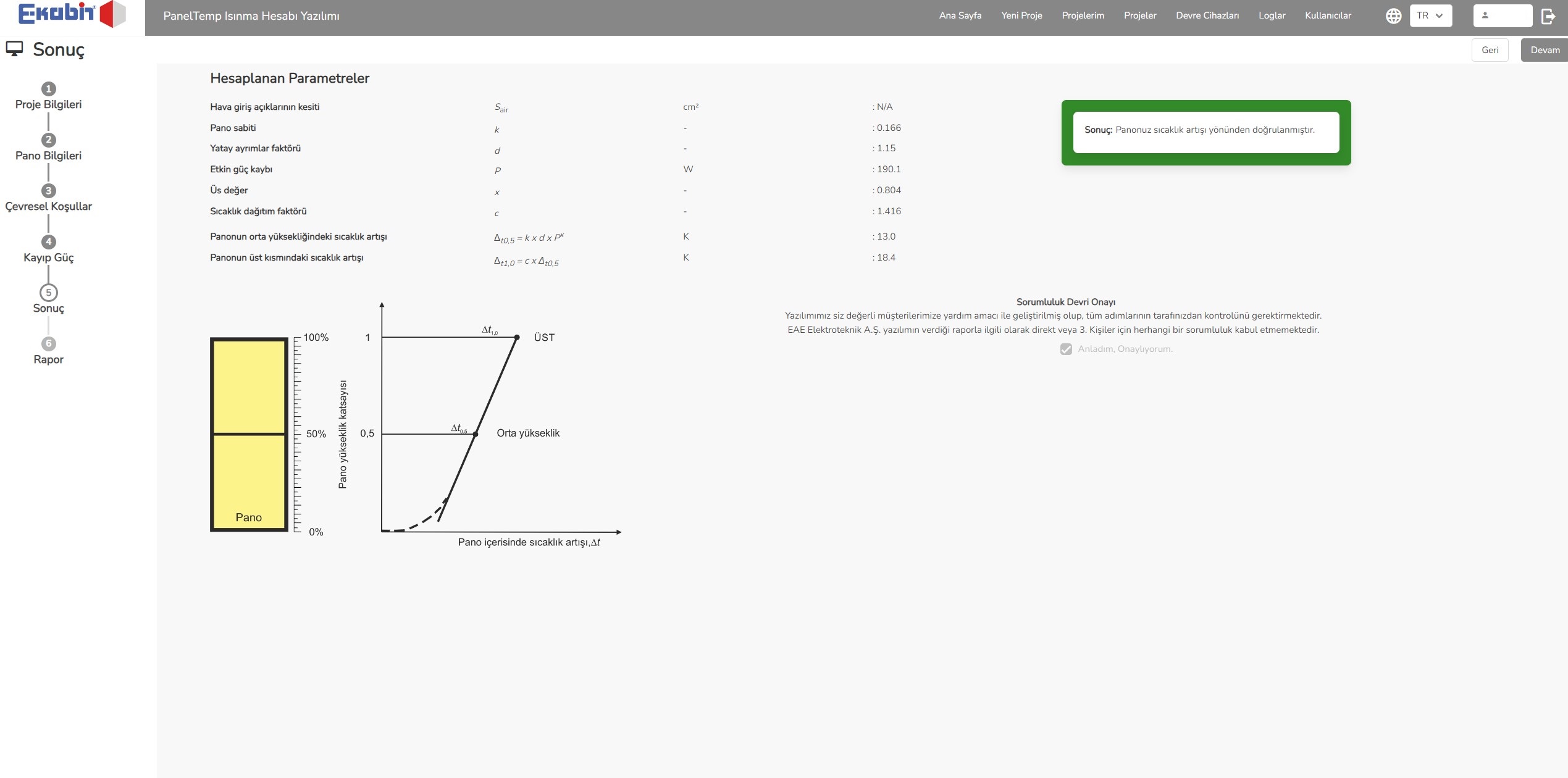

  • Standard-Compliant Temperature Rise Control :  Detailed calculations prepared in accordance with the IEC TR 60890:2022 standard allow users to easily check the compliance of designed low voltage switchboards by calculating the temperature rise within them.

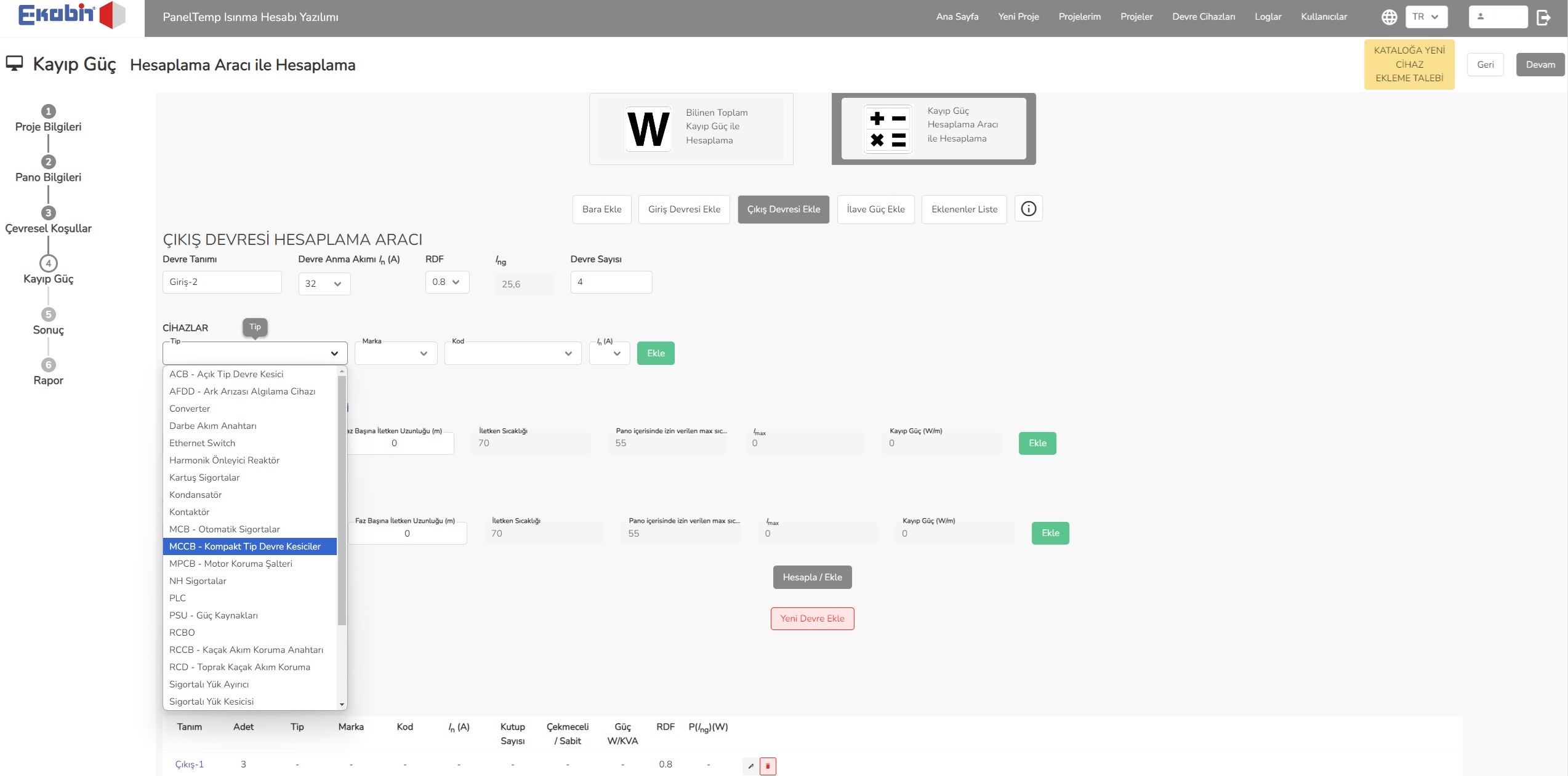

  • Extensive Device Library : The extensive device library allows for quick determination of the total power losses of the devices within the switchboard. Devices can also be added to this library by following the necessary steps.

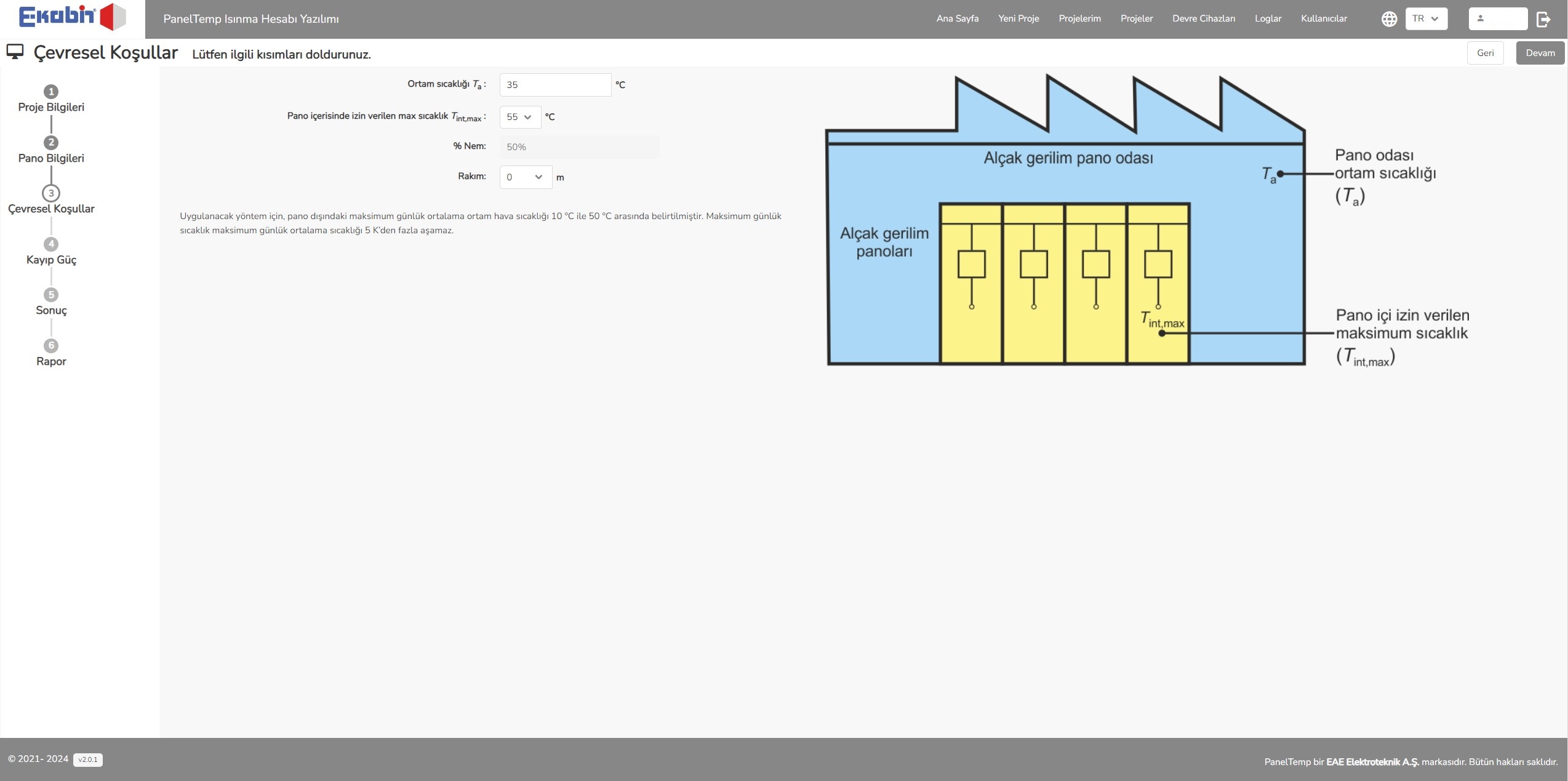

  • Selection and Calculation Possibility in Different Ambient Conditions :  The software allows calculations to be performed by changing the ambient temperature and altitude of the swithboard’s location.
  • Easy Simulation : Conditions can be changed to conduct trials to ensure the swithboards’ compliance.

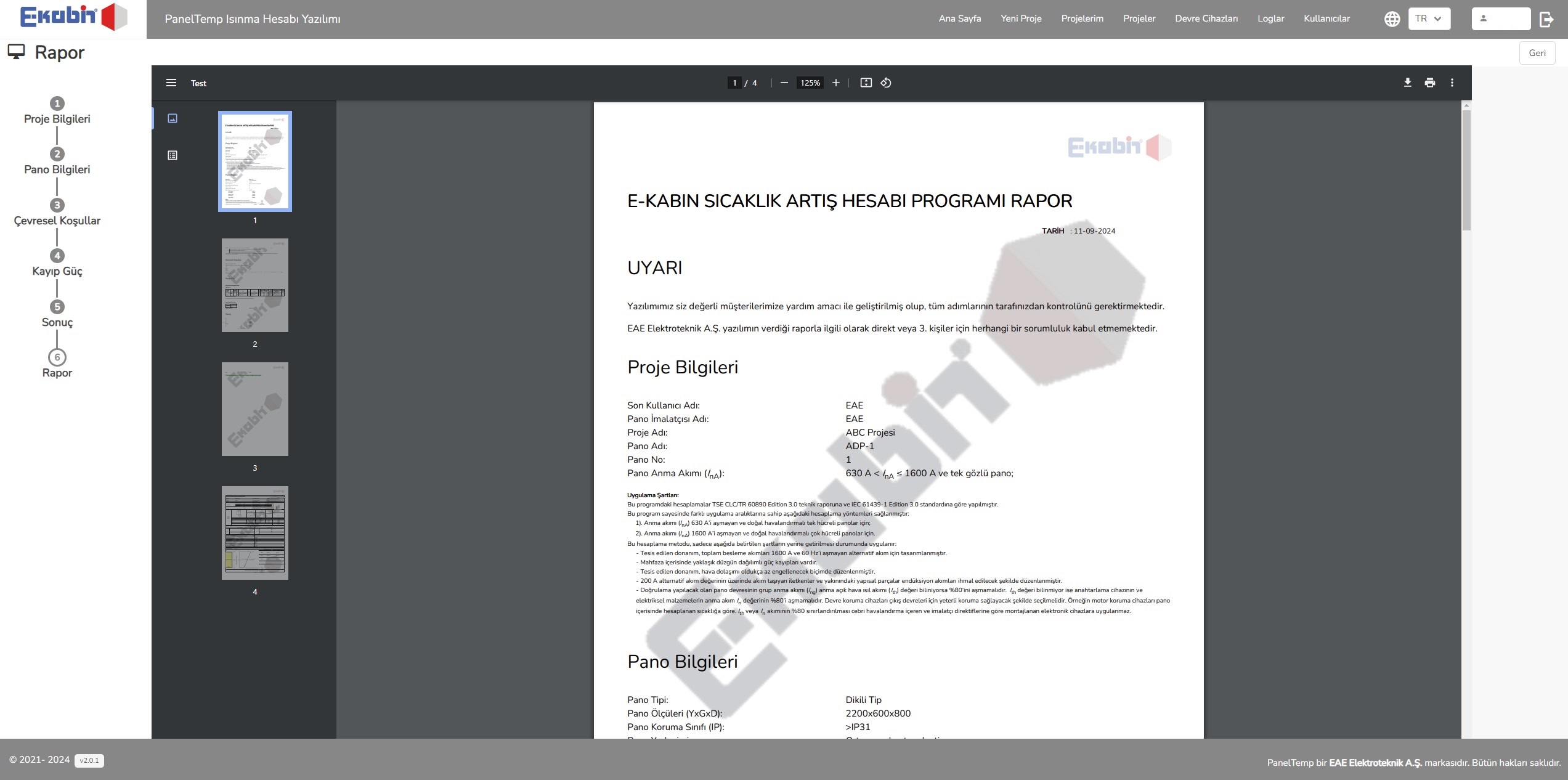

  • Detailed Reporting : Detailed reports in accordance with IEC standards can be obtained from the software for each panel.

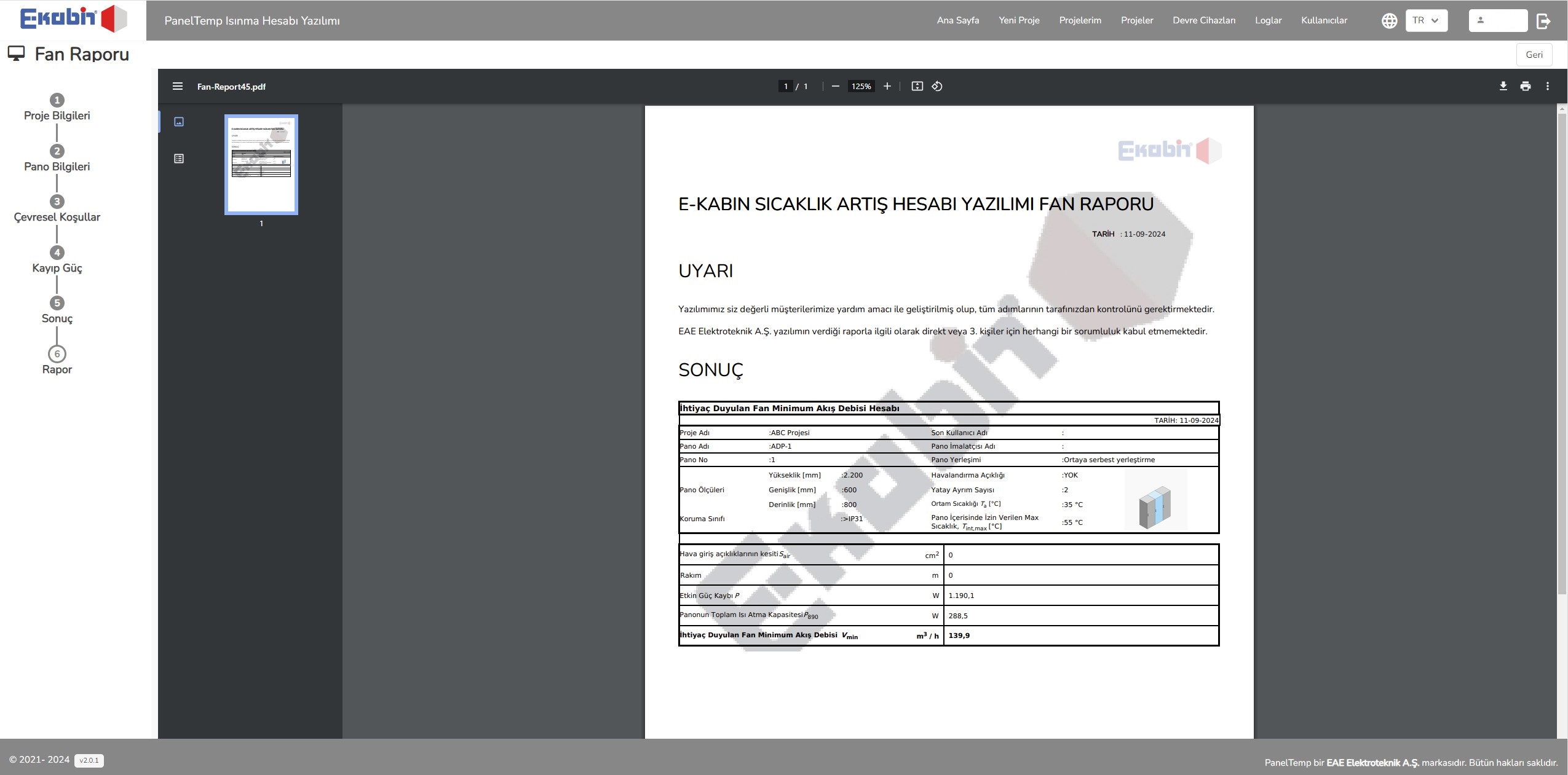

  • Fan Calculation Tool : Our software also facilitates fan calculations easily for switchboards exhibiting unsuitable temperature rises.
  • Turkish and English Language Options : The software can be used in both Turkish and English. Users can freely obtain the reports in two language options.
  • Project Storage : Users can create user names to store projects and have access them when needed.
