EdgeBLOK MDC - Micro Data Center

EdgeBLOK MDC - Micro Data Center solution is a package that provides power, cooling, monitoring, security and essential accessories into a single cabinet.

General Technicial SpecificationsCatalog CertificatesOther Documents

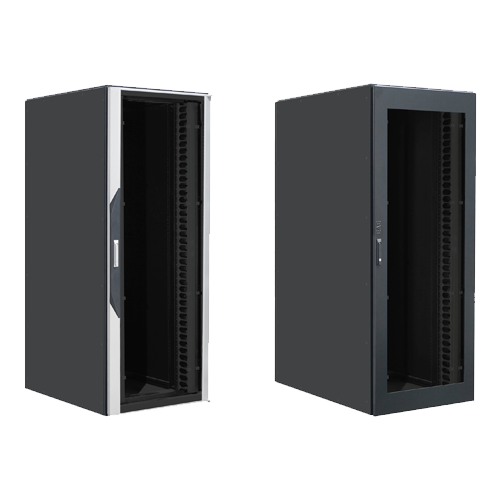

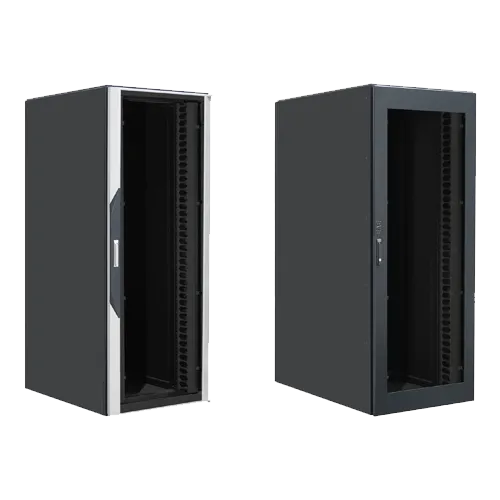

Edge Computing Cabinets

Build on the successful KabinPLUS platform, KI Series thermal

insulated cabinets are designed to be used with in-rack type

coolers to create an edge computing station.

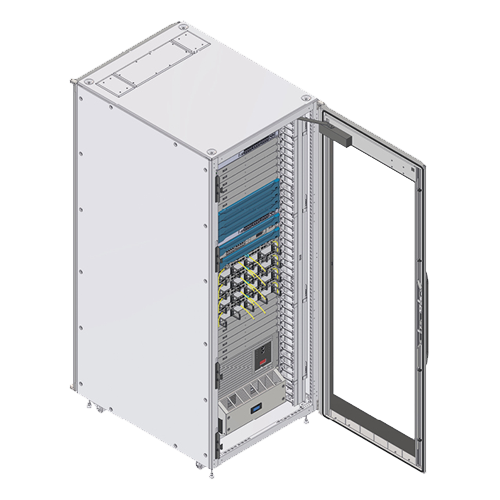

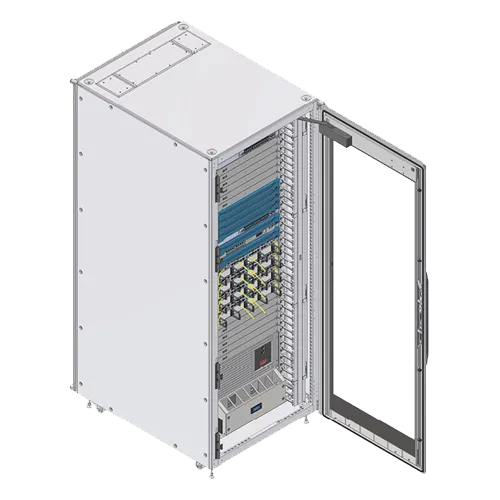

Equipment Options

• Uninterruptible power supply unit

• Power distribution panel with metering

• Access control, electronic lock

• Security surveillance

• Basic or intelligent IP PDU

• Environmental monitoring

• Fire monitoring and protection

• Cooling equipment

Front and Rear Doors

Glazed front door has a strong frame made of aluminium. The locking mechanism consists four locking points and ensures airtightness with polyurethan foam gasket.

Standard door options

- Aluminium frame glazed front door

- Split solid metal rear door

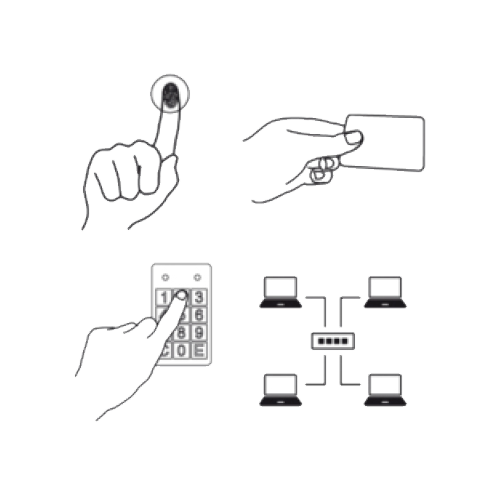

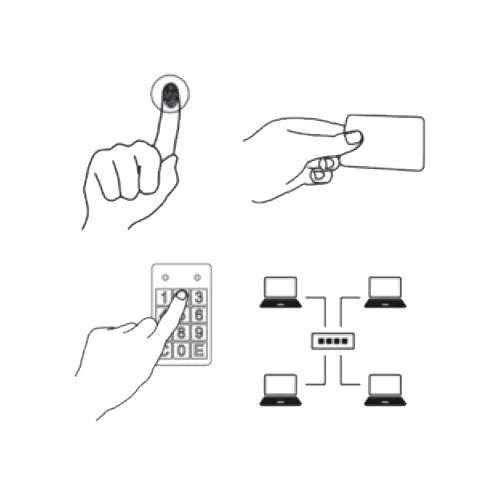

Locking options

- Combination lock

- Keyed mechanical lock

- Electronic lock

- Electronical lock with keypad

- Electronical lock with card reader

- Electronical lock with remote access control

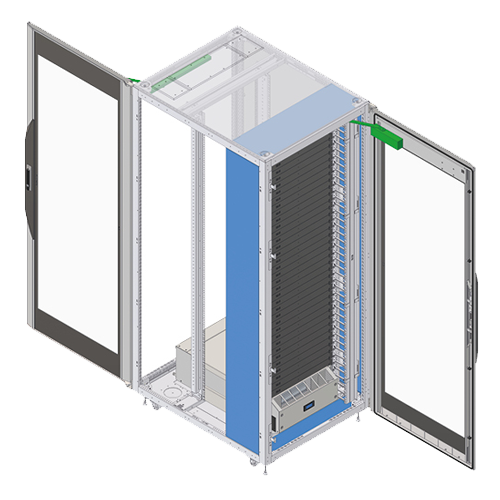

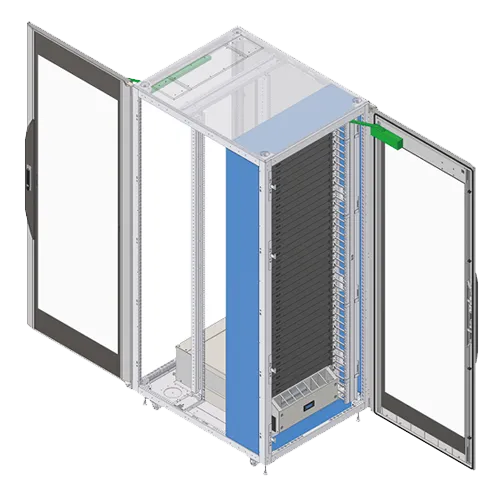

Thermal Insulated Cold Zone

The space between 19 inch equipment front plane and the glass door has been turned into a cold zone with special thermal insulation material used on side walls and upper/lower parts. In this way, it is ensured that the cold air directed upwards from the bottom of the cabinet by the cooling unit passes only inside active devices.

Emergency Self-Opening Door

Optionally, the self-opening emergency door system can open the door in emergencies such as power outages using the mechanical energy it has previously accumulated. Thus, servers or other devices installed in the cabinet can continue to cool themselves with the ambient air in the room using their own cooling systems. In this case, the cooling power requirement may not be included in the uninterruptible power supply power capacity

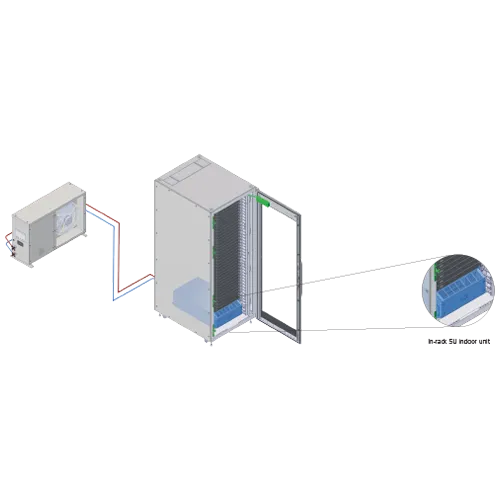

In-Rack Cooling Unit

* 5U height

* 3,2 kW and 4 kW DX cooling capacity options

* Maximum piping length between the indoor and outdoor

units is 70 m

* Efficient cooling with heigh EER

* Remote monitoring and control -

* SNMP option

* In emergency situations, capacity can go up to 4,5 kW

Edge Computing Cabinets	Entry Configuration	Value Configuration	Premium Configuration
Cabinet Height	42U - 47U	42U - 47U	42U - 47U
Cabinet Width	600 - 800	600 - 800	600 - 800
Cabinet Depth	1000 / 1200	1000 / 1200	1000 / 1200
Available Rack U Space	28U / 33U	28U / 33U	28U / 33U
Cooling Capacity	3kW DX	4kW DX	4kW DX
Power Supply	230V / 1P / 50Hz / 16A	230V / 1P / 50Hz / 16A	230V / 1P / 50Hz / 32A
UPS Capacity	5kW (6kVA) 5 minutes backup duration	5kW (6kVA) 5 minutes backup duration	5kW (6kVA) 5 minutes backup duration
Cabinet Power Distribution	Basic PDU, 0U, 16A, 230V, (20) C13 & (4) C19	Basic PDU, 0U, 16A, 230V, (20) C13 & (4) C19	Basic PDU, 0U, 16A, 230V, (18) C13 & (3) C19
Environmental Monitoring	Temp&Hum. Sensor, Door sensor	Smoke Detector, Energy Analyzer	UPS Monitoring, Cooling Monitoring
Security	Standard Mechanical Lock	ACS, Fire Suppression	ACS, CCTV, Fire Suppression
Emergency Door Release	Optional	Optional	Optional
Panel PC	None	Optional	Yes

Remote Monitoring

Energy, Cooling, Security, Environmental Parameters
