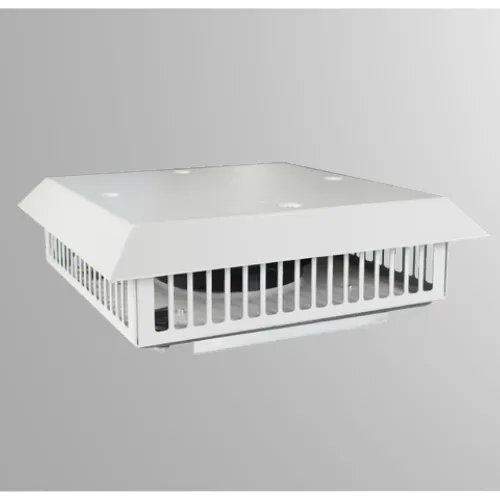

Roof Top Fan - EG FM

Enclosures are designed for "forced ventilation" purposes.

• Power supply: 220-240 V, 50-60 Hz
• Maximum consumption: 52W
• Ball bearing radial fan with backward-facing blade angle
• Operating cycle %100

Scope

  •  1 pcs. top fan (German EBM brand 540 m3/h radial fan)

Colour

  • Painted, RAL 7035


Applicable Series

SDL
Roof Top Fan

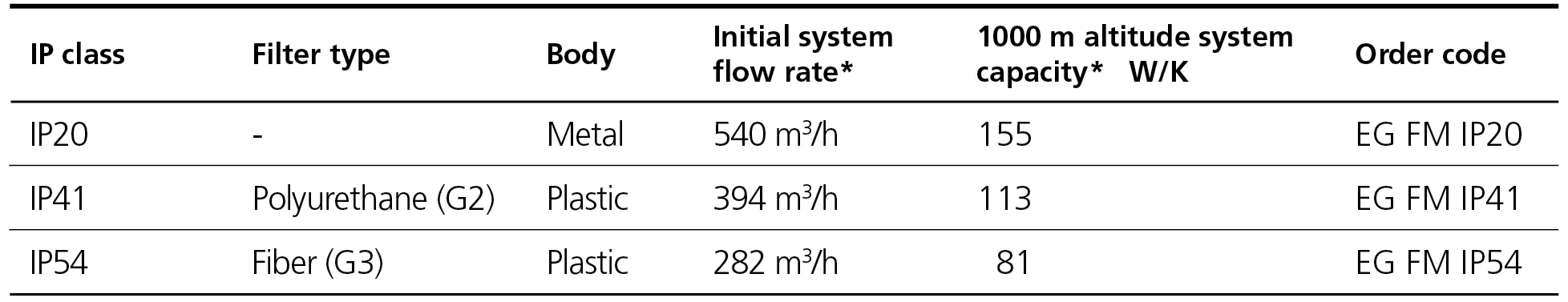

Order Code

EG FM IP20

Order Code

EG FM IP41

Order Code

EG FM IP54

Note: Air intake into the enclosure and the effect of internal pressure drops on the system flow rate should also be evaluated. It should be considered that flow rate will decrease if the filters are not cleaned or replaced.

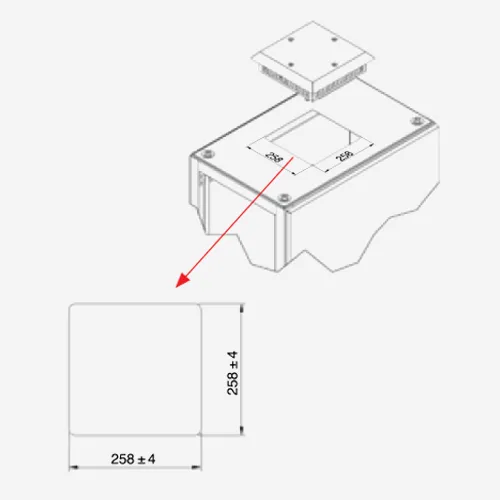

Roof top fan is NOT suitable for 40 cm wide panels.

* The system flow rate (combined with EG FIL 25 as the top fan and air intake filter) was determined by calculated using the same type fan and new filters.
