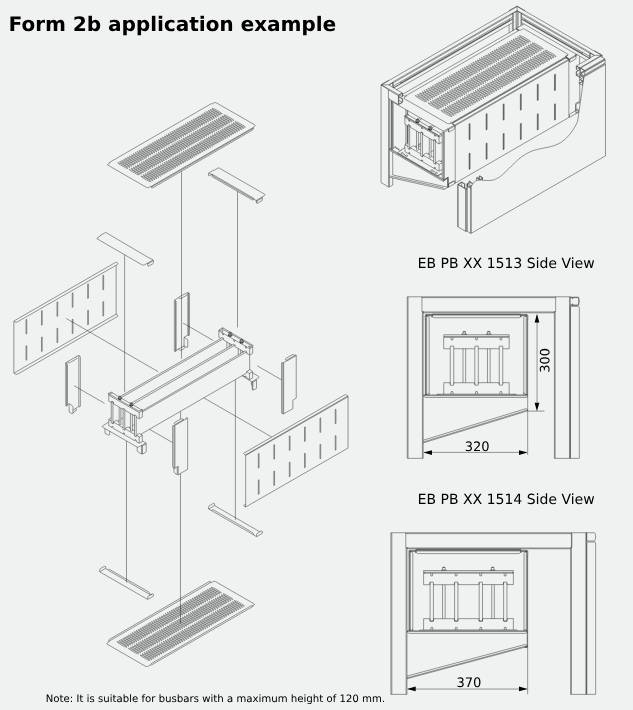

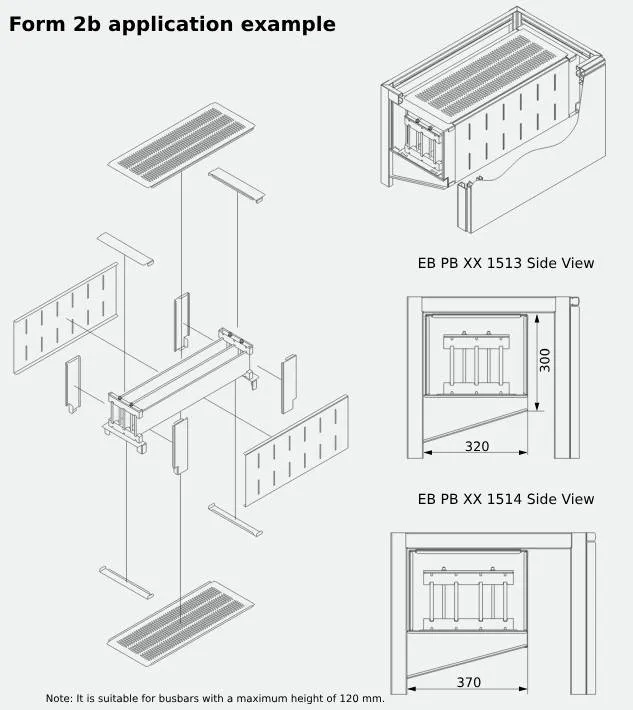

 EB PB Main Busbar Form of Separation

It includes parts to be used for the separation of main busbars. Front and back sides of the main busbar are separated, and the upper and lower parts can be changed depending on design preference. The bottom and top parts may be empty depending on the design and may be separated by aluminum or pre-galvanized material.

Available Panel

  • 400
  • 500
  • 600
  • 700
  • 800
  • 1000
  • 1200
  • 1400

Widths

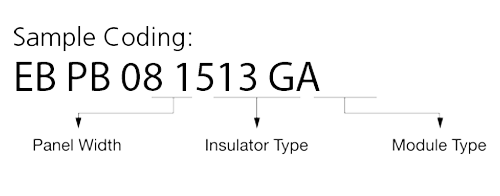

Order Codes

EB PB XX 1513 00 (Bottom and top side empty)

-

EB PB XX 1513 G0 (Bottom side empty, top side pre-galvanised)

EB PB XX 1513 GG (Bottom and top sides pre-galvanised)

EB PB XX 1513 A0 (Bottom side empty, top side aluminum)

IEB PB XX 1513 GA (Bottom side aluminum, top side pre-galvanised)

EB PB XX 1513 GA (Bottom side aluminum, top side pre-galvanised)

EB PB XX 1513 AA (Bottom and top sides aluminum)

EB PB XX 1514 00 (Bottom and top side empty)

EB PB XX 1514 G0 (Bottom side empty, top side pre-galvanised)

EB PB XX 1514 GG (Bottom and top sides pre-galvanised)

EB PB XX 1514 A0 (Bottom side empty, top side aluminum)

EB PB XX 1514 GA (Bottom side aluminum, top side pre-galvanised)

EB PB XX 1514 AA (Bottom and top sides aluminum)

In what cases should aluminum be used?

Magnetic eddy currents and hysteresislosses can be significant where the use ofconductors in AC circuits with a currentrating exceeding 600 A pass throughferromagnetic enclosures, sections or plates.A non-magnetic material such as aluminiumcan be used at higher current.
