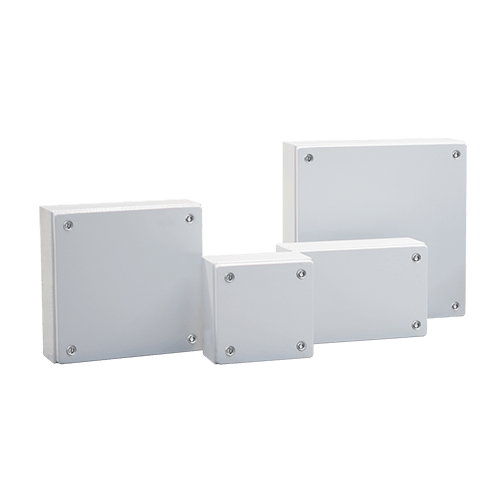

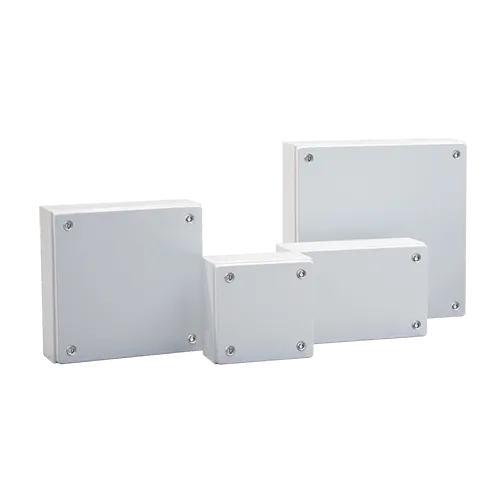

T Series

E-Kabin T Series terminal boxes are designed as general purpose electrical equipment enclosures for indoor applications. They have monoblock body structure and provide IP66 protection degree. The body and door are made of pre-galvanized sheet steel and painted with epoxy polyester powder coating.

ceyrek-cevrimli-gomulu-kilit

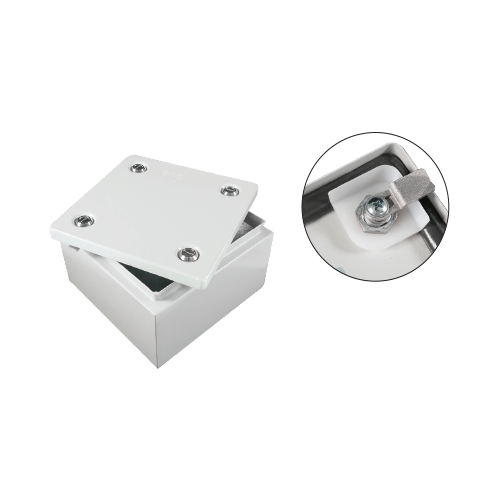

Quarter-turn lock

With the quarter-turn lock, the door can be opened and  closed easily.

poliuretan-conta

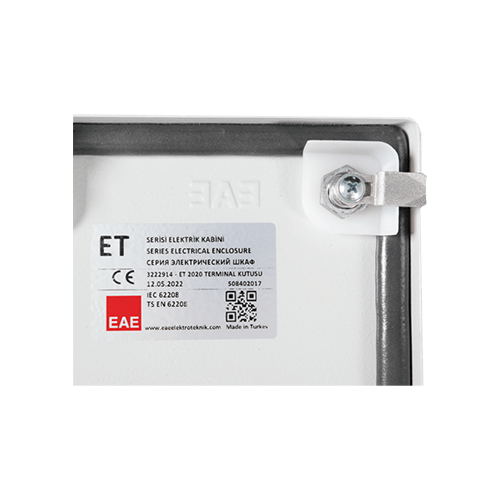

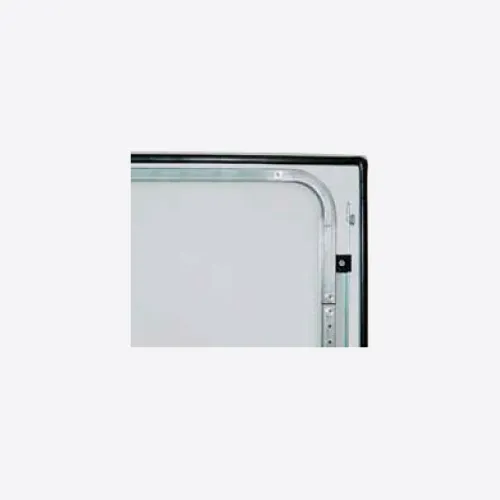

Polyurethane sealing gasket

Foam-in place gasket applied to the door does not lose its elasticity in time and provides protection against dust and water.

siparise-ozel-delik-imkani

Possibility of custom-made cut-outs

For high quantity orders, custom-made cut-out processing  on door and body is applicable

* For details, you can get information from your  customer representative.

genis-kutu-agiz-acikligi

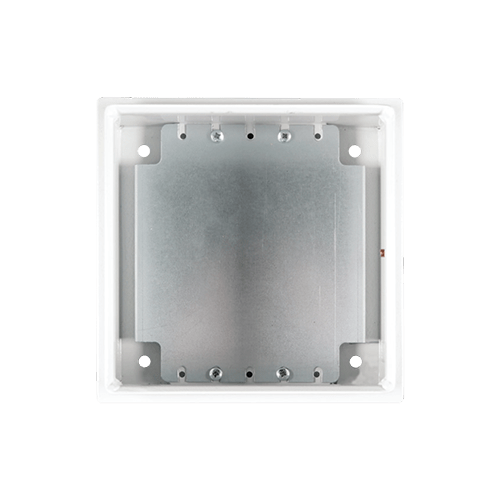

Wide access to box

The design of the box opening prevents installation space losses and provides ease of access and installation inside the box.

kullanisli-montaj-plakasi

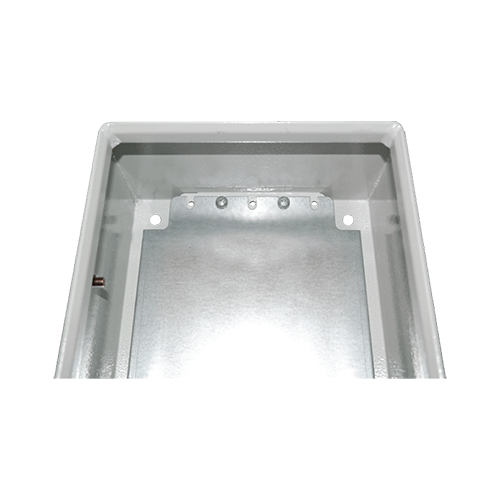

Practical mounting plate

Design of the mounting plate allows to evaluate the  usable space inside the box with minimum loss.

kullanisli-braket-aksesuari

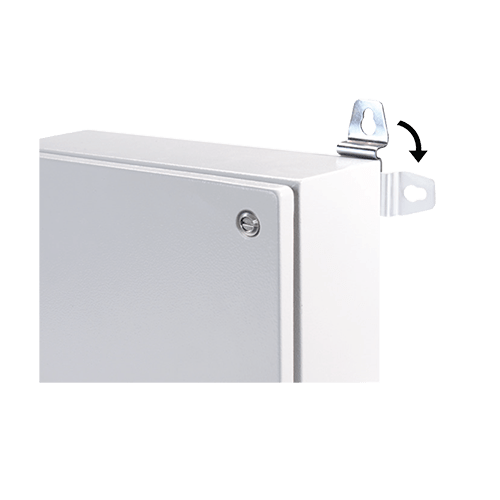

Useful bracket accessory

With the bracket set, the box can be mounted to the wall easily and quickly. By turning the bracket 90°, mounting flexibility is provided. The bracket set, which is not included in the standard box, must be ordered separately when requested.

Type of Mounting :

Wall-Mounted

Modularity :

Monoblock

Application :

Indoor

Protection Class :

IP 66

Paint :

 Epoxy - polyester powder paint

Colour :

Standard RAL 7035 (Grey Colour)

Environmental Class :

According to EN 60721 - 3 - 3 IE32

Standards :

IEC 62208, IEC 60529, IEC 62262

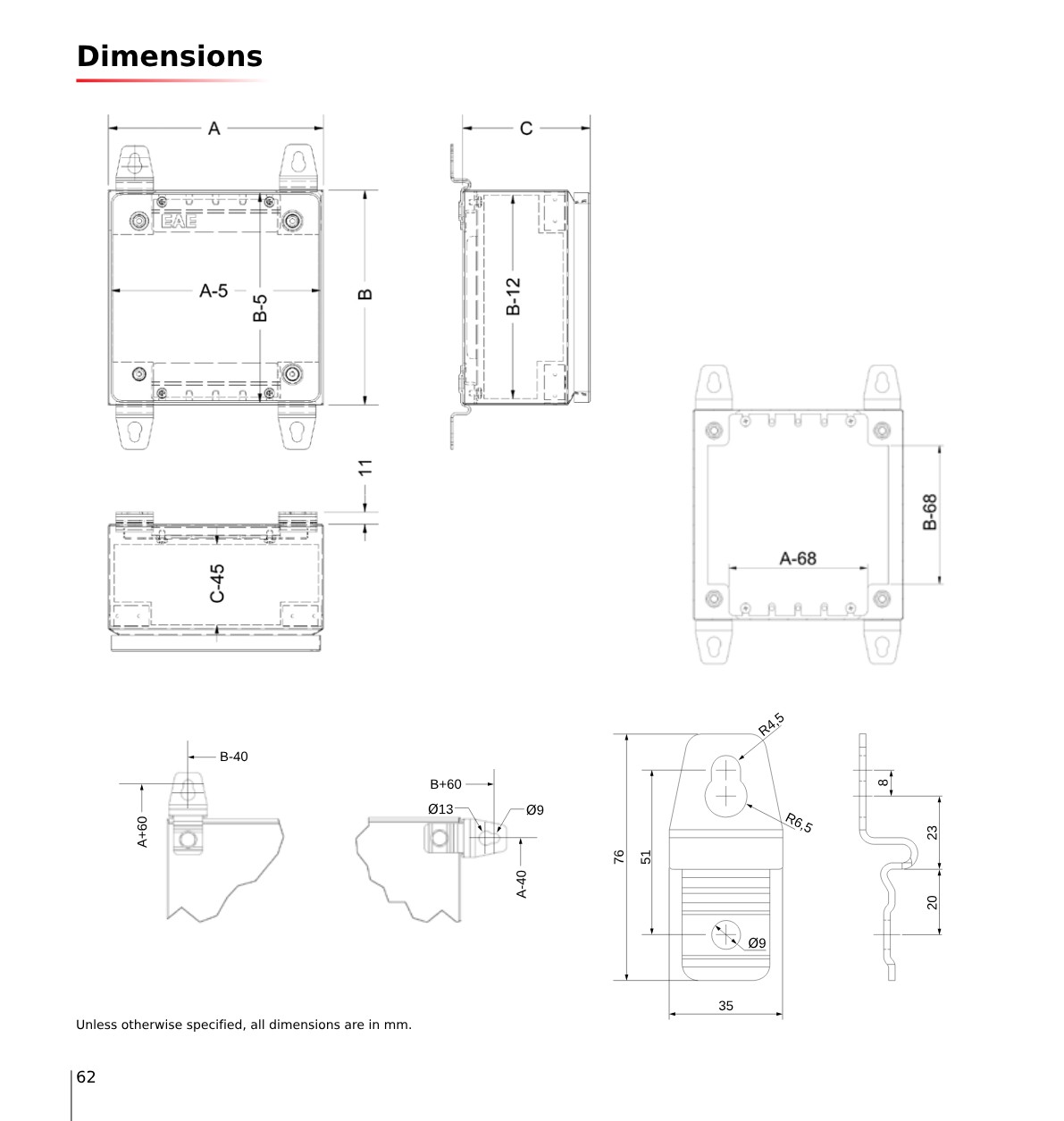

Enclosure Rated Height (B)

Enclosure Rated Width (A)

Enclosure Rated Depth (C)

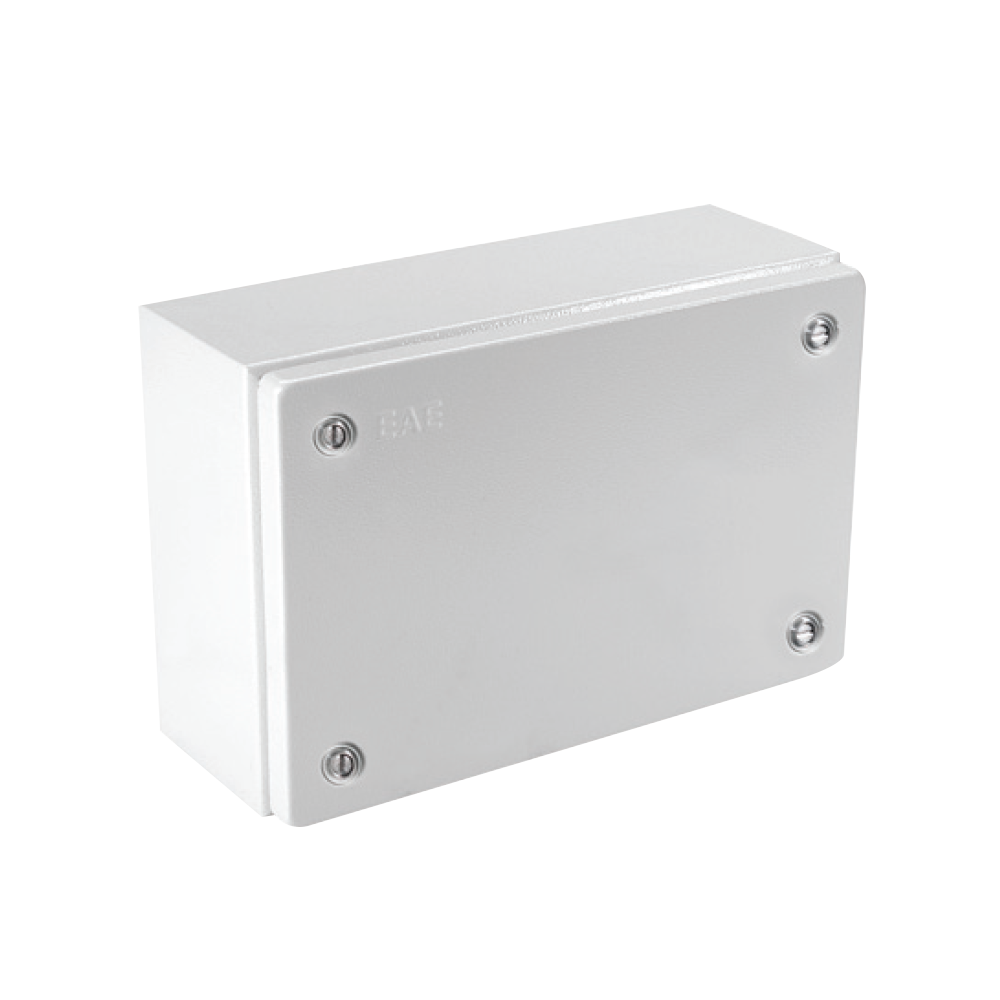

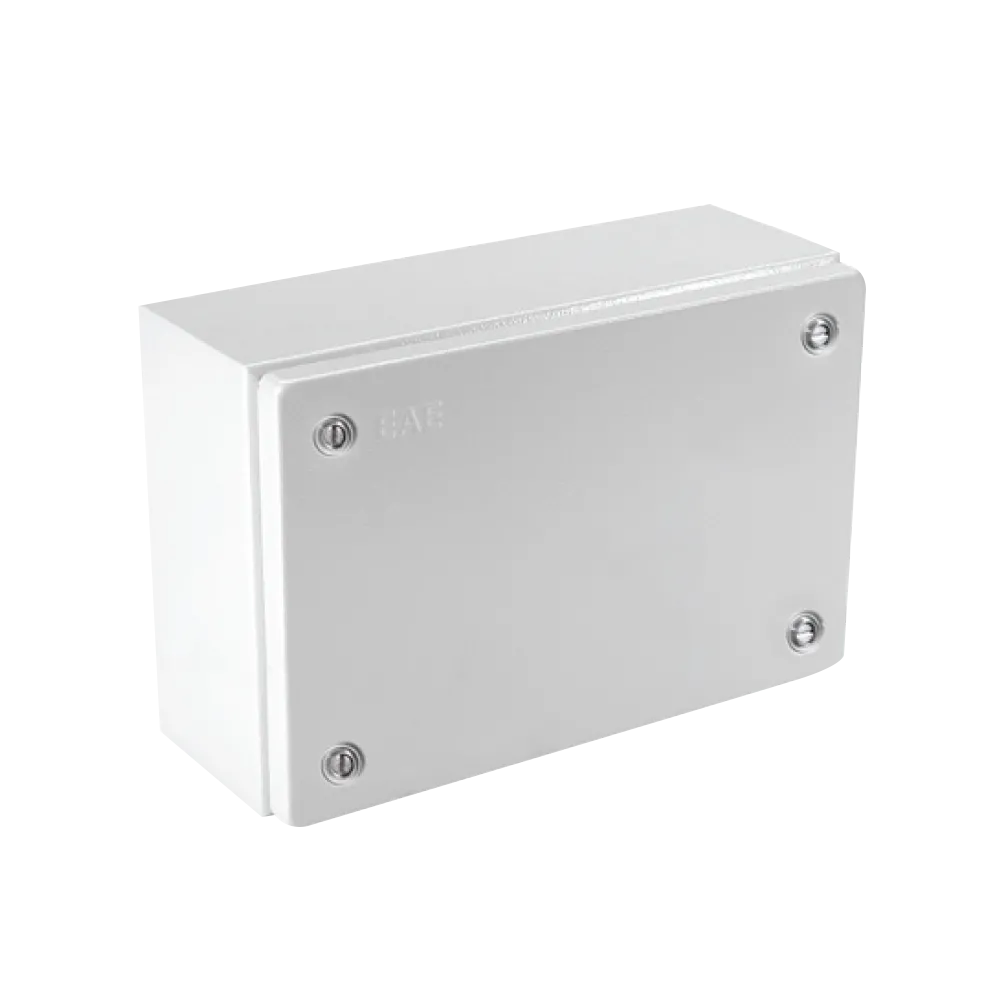

Order  Codes

200

200

120

ET 20 20

200

300

120

ET 20 30

200

400

120

ET 20 40

300

300

120

ET 30 30

300

400

120

ET 30 40

400

400

120

ET 40 40

Note: The mounting plate is included in the order content; bracket set is excluded.
