EB GFG Support Insulator

Material

Polyester with glass fiber reinforced
Does not emit halogen gas when burned (Halogen free)

Properties

  • Maximum effective short circuit current 50 kA
  •   Designed to be used with 5 mm and 10 mm
  • thick busbars.
  • Continous operation temperature max.130 ºC
  • Material CTI value 600 V
  •  Material group I

Rated insulation voltage

  • Pollution degree III maximum 1000 V

Order Codes

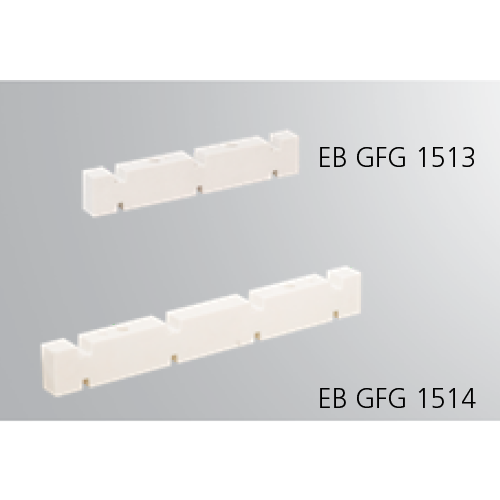

EB GFG 1513

EB GFG 1514

 SUPPORT INSULATOR SHORT CIRCUIT WITHSTAND CURRENT - 1 s.

EB GFG 1513 - 1514

Enclosure Rated Width

Distance Between Insulators L (mm)

Busbar Cross-Sections (mm)

04

300


05

400

06

500

07

600

08

700

Busbar Cross-Sections (mm)

30x10

40x10

50x10

60x10

80x10

100x10

120x10

47 kA

50 kA

50 kA

50 kA

50 kA

50 kA

50 kA

41 kA

47 kA

50 kA

50 kA

50 kA

50 kA

50 kA

36 kA

42 kA

47 kA

50 kA

50 kA

50 kA

50 kA

33 kA

38 kA

43 kA

47 kA

50 kA

50 kA

50 kA

31 kA

35 kA

40 kA

43 kA

50 kA

50 kA

50 kA

 SUPPORT INSULATOR SHORT CIRCUIT WITHSTAND CURRENT - 1 s.

EB GFG 1513 - 1514

Enclosure Rated Width

Distance Between Insulators L (mm)

Busbar Cross-Sections (mm)

04

300


05

400

06

500

07

600

08

700

Busbar Cross-Sections (mm)

30x5

40x5

50x5

60x5

80x5

100x5

120x5

23 kA

25 kA

28 kA

31 kA

35 kA

40 kA

43 kA

20 kA

23 kA

26 kA

29 kA

33 kA

37 kA

41 kA

18 kA

21 kA

23 kA

25 kA

29 kA

32 kA

35 kA

17 kA

17 kA

21 kA

23 kA

27 kA

30 kA

33 kA

15 kA

15 kA

20 kA

22 kA

25 kA

28 kA

31 kA
