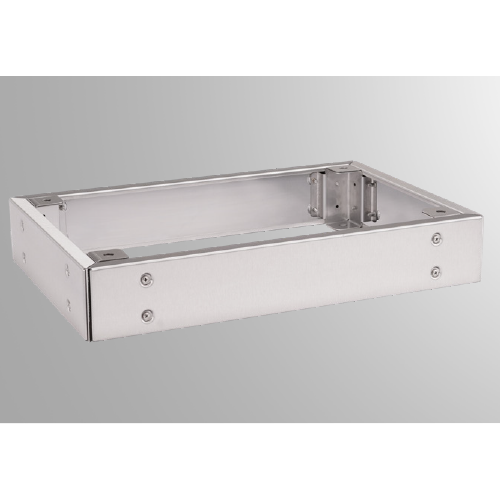

Plinth Set - XS BZ

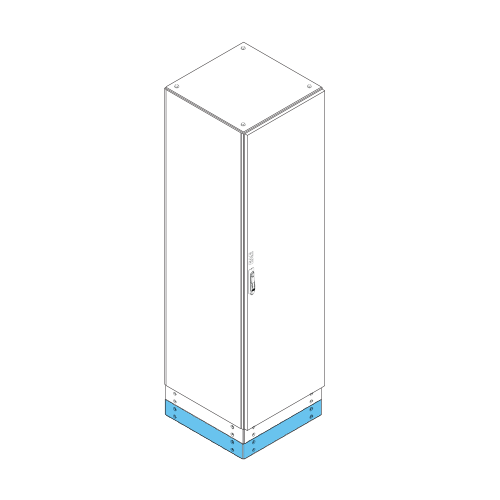

Mounted under existing plinth of the enclosure, it allows the enclosure to be raised 100 mm more

Material

AISI 304 grade stainless-steel sheet

Scope

  • 4 pieces of Plinth corners
  • 4 pieces of Plinth rails
  • 1 piece of Fittings set


Applicable Series

XS
Plinth Set

Enclosure Rated Width

Enclosure Rated Depth

Order Codes

400

400

500
600
700
800

XS BZ 0404

XS BZ 0405
XS BZ 0406
XS BZ 0407
XS BZ 0408

500

400

500
600
700
800

XS BZ 0504

XS BZ 0505
XS BZ 0506
XS BZ 0507
XS BZ 0508

600

400

500
600
700
800

XS BZ 0604

XS BZ 0605
XS BZ 0606
XS BZ 0607
XS BZ 0608

700

400

500
600
700
800

XS BZ 0704

XS BZ 0705
XS BZ 0706
XS BZ 0707
XS BZ 0708

800

400

500
600
700
800

XS BZ 0804

XS BZ 0805
XS BZ 0806
XS BZ 0807
XS BZ 0808

1000

400

500
600
700
800

XS BZ 1004

XS BZ 1005
XS BZ 1006
XS BZ 1007
XS BZ 1008

1200

400

500
600
700
800

XS BZ 1204

XS BZ 1205
XS BZ 1206
XS BZ 1207
XS BZ 1208
