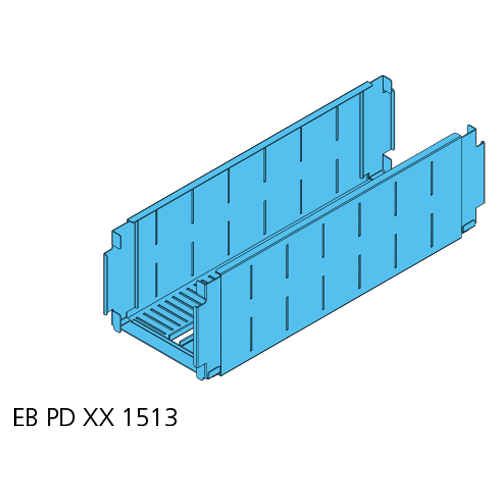

 EB PD Main Busbar Form of Separation Set

It includes products to be used for separating main busbars (form of separation) in automation panels. All parts in its content are manufactured from pre-galvanized steel material. The front, back and bottom parts of the product are separated. It is used only at the top of the panel, there is no need to cover the top side separately. The product is available to use with EB GFG and EB PAG insulators. It can be used with a full-height mounting plate(200 mm shorter than the panel height).

Available panel widths

  • 400
  • 500
  • 600
  • 700
  • 800
  • 1000
  • 1200
  • 1400

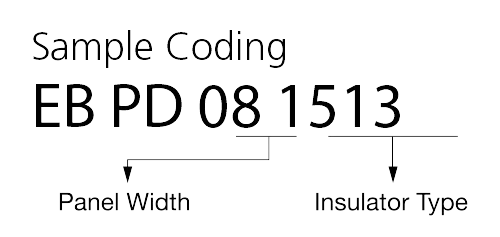

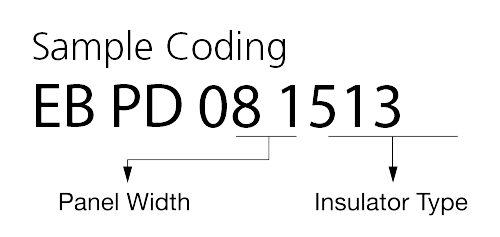

Order Code

EB PD XX 1513

EB PD XX 1514

Note 1: This form of separation set is available to use with EG MC mounting rail and cannot be usedwith EB YT support profile.
Note 2: Suitable for a maximum 100 mm high busbar.
