L Series

E-Kabin L Series floor-standing enclosures are designed to be used in industrial applications. L Series enclosures are suitable for indoor applications and have modular structure, which enables expansion by combining side by side. It is produced in IP40 protection class as standard, and the protection class can be upgraded to IP55 by ordering the IP55 kits separately. Doors and covers are made of pre-galvanized steel sheet coated with epoxy polyester powder paint and inner parts are also made of pre-galvanized steel. The product adds value with its simple design and functionality in different applications.

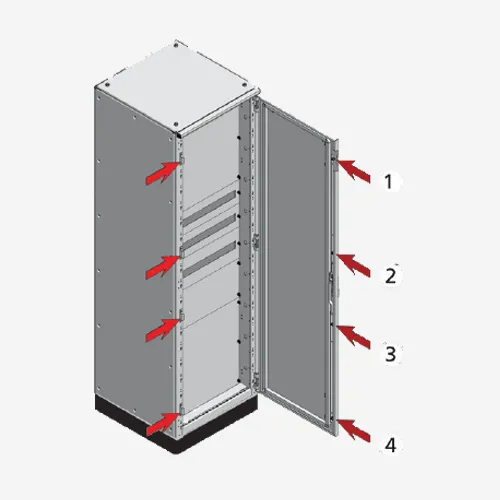

dort-noktadan-kilitleme

Reliable locking system

Locking system enables the door to be fixed to the framework at four different points.

kolay-montaj-ortak-aksesuarlar

Easy electrical assembly with mutual mounting accessories

Thanks to robust framework and internal mounting accessories; door, back and side panel fixing is carried out after electrical assembly. Internal mounting accessories are designed to be used in all E-Kabin series.

havalandirma-modulu-aksesuari

Door with ventilation modules

Ventilation module option for high-capacity natural ventilation.

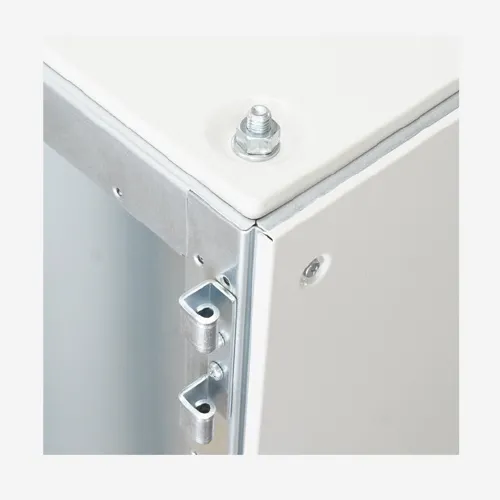

iskelete-asilabilen-yan-kapak-tasarimi

Hangable side cover design to framework

The feature of back and side covers can be hung on the framework, which provides easy assembly.

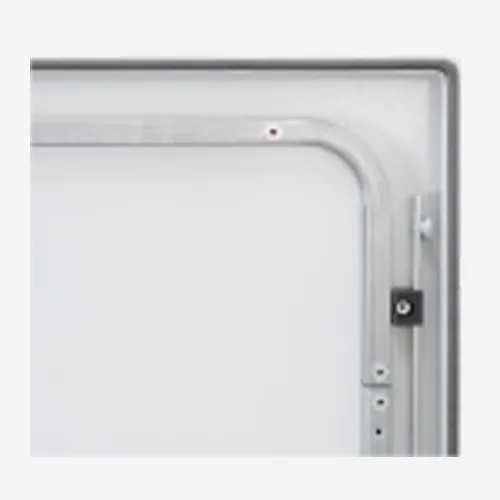

poliuretan-conta

Polyurethane sealing gasket

Foam-in-place gasket applied to door does not loose its elasticity in time and provides protection against dust and water.

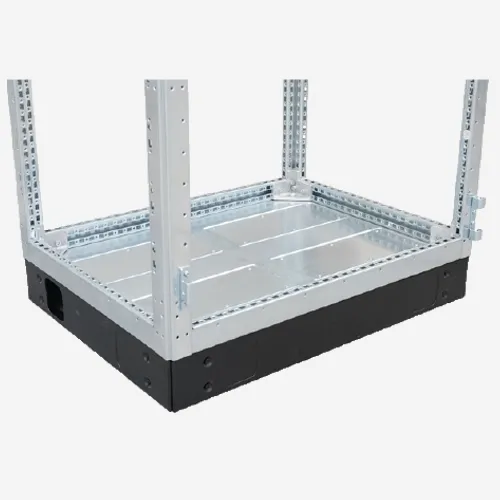

ip40-alt-ortu-duzenegi

IP40 Modular bottom plate arrangement

Bottom plate arrangement complying with IP40 protection degree provides comfort with possibility of sliding piecess. Bottom plates can be equipped with different brushes which are supplied as accessories.

menteseli-ortu-plakalari

Front cover plates with hinges

Cover Plates are manufactured as hinged and openable. So, it provides easy job to intervene without removing the cover plate.

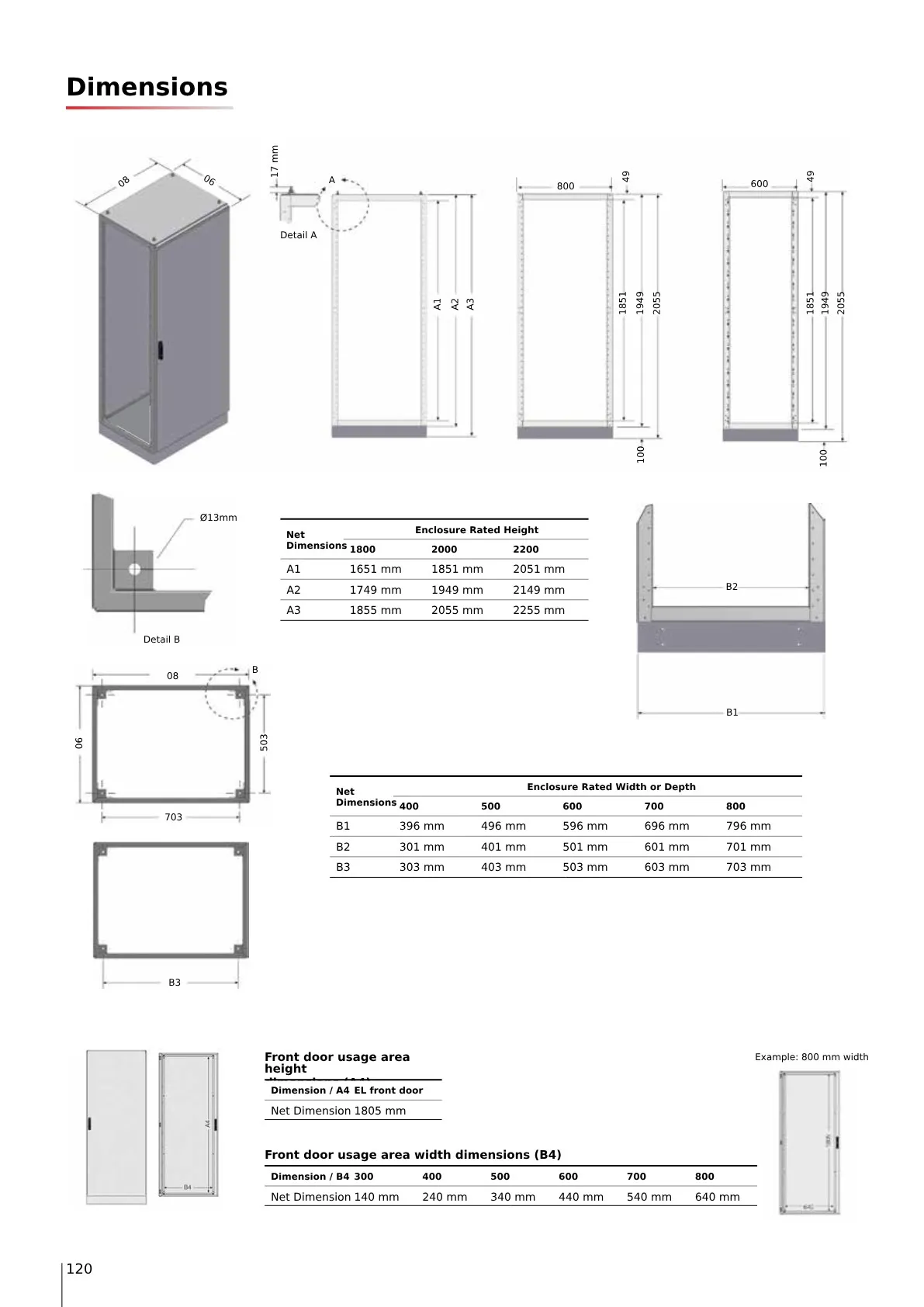

Type of Mounting:

Floor-Standing

Modularity:

Modular

Application:

Indoor, dry environment

Protection Class:

 IP40, IP55 (optional)

Framework:

Pre-galvanized steel sheet

Paint:

Epoxy - polyester powder paint

Colour:

Standard RAL 7035 (Grey Colour)

Environmental Class:

According to EN 60721 - 3 - 3 IE32

Standards:

IEC 61439-1, IEC 62208, IEC 60529, IEC 62262

Modül Seti - EL MS-1
Modül Seti - EL MS-2
Modül Seti - EL MS-1Modül Seti - EL MS-2

Module Set - EL MS

Supply contents include horizontal rails, top cover and bottom plate.
Material  : Galvanized steel sheet
Surface     :  RAL 7035 (Grey Colour), Plinth RAL 9005 (Black Colour)
Content    : 4 pieces of Horizontal rails (for width)
                   4 pieces of Horizontal rails (for depth)
                   1 piece of Top cover
                   1 piece of Top cover fittings pack
                   1 piece of Plinth set
                   1 piece of Plinth set fittings pack
                   1 set of Corner connection kit
                   (8 pieces of Corner connection plates and fasteners)
                   1 piece of Bottom cover
                   Bottom cover gland plate (see table for quantity)


Available Series:

EL
Module set

Enclosure Rated Width

Enclosure Rated Depth

Order Codes

400

400

500
600
700
800

EL MS 0404

EL MS 0405
EL MS 0406
EL MS 0407
EL MS 0408

500

400

500
600
700
800

EL MS 0504

EL MS 0505
EL MS 0506
EL MS 0507
EL MS 0508

600

400

500
600
700
800

EL MS 0604

EL MS 0605
EL MS 0606
EL MS 0607
EL MS 0608

700

400

500
600
700
800

EL MS 0704
EL MS 0705
EL MS 0706
EL MS 0707
EL MS 0708

800

400

500
600
700
800

EL MS 0804

EL MS 0805
EL MS 0806
EL MS 0807
EL MS 0808

Module sets for Enclosures with overlapping door

Enclosure Rated Width

Enclosure Rated Depth

Order Codes

1000

400

500
600
700
800

EL MS 5504

EL MS 5505
EL MS 5506
EL MS 5507
EL MS 5508

1200

400

500
600
700
800

EL MS 6604

EL MS 6605
EL MS 6606
EL MS 6607
EL MS 6608

Gland plate

Enclosure Rated Width

Enclosure Rated Depth

                                       Gland Plate Content


                       RP 40                                            RP 60

300

400-500-600

700-800

                            -                                                           -

400-500

400-500

600-700-800

                            1                                                           -

                            2                                                           -

600-700

400-500

600-700-800

                            -                                                           1

                            -                                                           2

800

400-500

600-700-800

                            2                                                           -

                            4                                                           -

1000

400-500

600-700-800

                            2                                                           -

                            4                                                           -

1200

400-500

600-700-800

                            -                                                           2

                            -                                                           4

Dikey Profil Seti - EL DP-1
Dikey Profil Seti - EL DP-2
Dikey Profil Seti - EL DP-1Dikey Profil Seti - EL DP-2

Uprights Set - EL DP

EL DP is used vertical wise to assemble the enclosure framework.
Material  : Galvanized steel sheet
Surface        :  Galvanized, Not Painted
Content    : 4 pieces of uprights


Available Series:

EL
Uprights set

Enclosure Rated Height

Order Code

1800

EL DP 18 *

2000

EL DP 20 *

2200

EL DP 22 *

*  Products with a rated enclosure height of 1800 and 2200 should be ordered in a minimum of 10 pieces..
Ön Kapı ve Arka Kapak-EL OA-1
Ön Kapı ve Arka Kapak-EL OA-2
Ön Kapı ve Arka Kapak-EL OA-1Ön Kapı ve Arka Kapak-EL OA-2

Front Door and Rear Fixed Panel Set - EL OA

Material  : Galvanized steel sheet
Surface        :  Painted, RAL 7035 (Grey Colour)
Content    :  1 piece of Front door
                    1 piece of Rear fixed panel
                    (There are 2 pieces of rear fixed panels and 1 piece vertical inner profile in the pack for enclosures having overlapping doors)
                    1 piece of Lock
                    1 piece of Front door connection set
                    1 piece of Rear fixed panel connection set
Note:  If the protection class of L series are required to be IP55, EL OA IP55 set must also be added to the order. See page 201


Available Series:

EL
Front door and rear fixed panel set

Enclosure Rated Height

Enclosure Rated Width

Order Code

1800

400

500
600
700
800
500+500
600+600

EL OA 1804 *

EL OA 1805 *
EL OA 1806 *
EL OA 1807 *
EL OA 1808 *
EL OA 1855 *
EL OA 1866 *

2000

400

500
600
700
800
500+500
600+600

EL OA 2004

EL OA 2005
EL OA 2006
EL OA 2007
EL OA 2008
EL OA 2055
EL OA 2066

2200

400

500
600
700
800
500+500
600+600

EL OA 2204 *

EL OA 2205 *
EL OA 2206 *
EL OA 2207 *
EL OA 2208 *
EL OA 2255 *
EL OA 2266 *

Note: Overlapping doors are shipped with 2 rear covers and 1 vertical inner profile.
*  Products with a rated enclosure height of 1800 and 2200 should be ordered in a minimum of 10 pieces..
null

Front Door Width

Length L

Code

50 cm

34,5 cm

EG MA 0350

60 cm

44,5 cm

EG MA 0450

70 cm

54,5 cm

EG MA 0550

80 cm

64,5 cm

EG MA 0650

Yan Kapak Çifti - EL YS-1
Yan Kapak Çifti - EL YS-2
Yan Kapak Çifti - EL YS-1Yan Kapak Çifti - EL YS-2

Side Fixed Panel Set - EL YS

It is used to close sides of enclosures. The design of the rear and side fixed panels are the same.
Material  : Galvanized steel sheet
Surface        :  Painted, RAL 7035 (Grey Colour)
Content    :  2 pieces of Fixed panels
                    2 pieces of Fittings set


Available Series:

EL
YS Side fixed panel set

Enclosure Rated Height

Enclosure Rated Depth

Order Code

1800

400

500
600
700
800

EL YS 1804 *

EL YS 1805 *
EL YS 1806 *
EL YS 1807 *
EL YS 1808 *

2000

400

500
600
700
800

EL YS 2004

EL YS 2005
EL YS 2006
EL YS 2007
EL YS 2008

2200

400

500
600
700
800

EL YS 2204 *

EL YS 2205 *
EL YS 2206 *
EL YS 2207 *
EL YS 2208 *

*  Products with a rated enclosure height of 1800 and 2200 should be ordered in a minimum of 10 pieces..
Boy Montaj Plakaları - EG MK-1
Boy Montaj Plakaları - EG MK-2
Boy Montaj Plakaları - EG MK-1Boy Montaj Plakaları - EG MK-2

Full Height Mounting Plate - EG MK

It is designed for general usage.
Material  : Galvanized steel sheet
Content    : 1 piece of Full height mounting plate
                   2 pieces of Depth rails
                   1 piece of Fittings set


Available Series:

ELESEDXSHS
Full height mounting plate

Enclosure Rated Height

Enclosure Rated Width

Enclosure Rated Depth

Steel Sheet Thickness

HH

WW

DD

TXX

12*

04

04

T15

14*

05

05

T20

16*

06

06

T30

18

07

07

20

08

08

22

10

12

*  Only T20 type is available in these dimensions (HH=12,14,16).
Mounting plate information

TXX

Steel Sheet Thickness

Maximum Carriage Capacity

Surface Protection

T15

1,5 mm

300 kg

Without Folio

T20

2 mm

600 kg

With Folio

T30

3 mm

600 kg

Without Folio
