XH Series

E-Kabin XH Series stainless-steel, floor standing enclosures are designed as general purpose electrical equipment enclosures for outdoor applications. Their structure is modular, which enables expansion by combining side by side. They provide IP 55 protection degree. Standard production does not include painting process. However, custom-made production, varnished or painted in the desired RAL code is possible. XS Series stainless-steel enclosures can be produced with AISI 304 or 316 grade raw material. Standard swinghandle lock is made of 316 grade stainless-steel. All E-Kabin interior accessories are designed to be suitable for use in stainless-steel enclosures as well. While keeping standard product design unchanged, size modification, material thickness modification and cut-outs can be applied if requested.


temiz-yuzey-deseni

Clean surface pattern

In production of stainless-steel enclosures, stud welding process is applied in a way that it does not leave any traces visible from outside the door. Thus, clean and smooth surface appearance has been provided for welded surfaces.

ortak-moduler-ic-aksesuarlar

Common interior accessories

Most of E-Kabin interior accessories such as mounting rails, mounting plates, cover plates etc. are designed to be suitable for use in stainless-steel enclosures.

cati-altinda-fan-imkani

Under canopy fan unit

“Under Canopy Fan Unit” is accesable from inside the enclosure for easy service and maintenance.

ozel-olcu-imkani

Possibility of custom size production

Non-standard, custom size manufacturing is possible.

* Please consult your Customer Represantative for more information.

moduler-yapi-yan-yana-genisleme

Modular design - side-by-side expandability

Thanks to its modular structure, it is possible to assemble and expand it side by side for multiple combinations. Moreover;

• Rear and front door use

• It is possible to change the door opening direction.

ust-aski-imkani

Optional lifting kit

Optional lifting kit enable fully loaded enclosure to be lifted up and carried for installation purposes.

paslanmaz-kilit

Stainless-steel lock

Lock system made of AISI 316 grade stainless-steel is included in the standard order content.

poliuretan-conta

Polyurethane sealing gasket

Foam-in-place gasket behind the door does not lose its elasticity in time and provides protection against dust and water.

Type of Mounting:

Floor-Standing

Modularity:

Modular

Application:

Outdoor

Protection Class:

IP55

Environmental Class:

According to EN 60721 - 3 - 3 IE37

Standards:

IEC 61439-1, IEC 62208, IEC 60529, IEC 62262

Material:

AISI 304 grade stainless-steel - standard

AISI 316 grade stainless-steel - optional

Lock set:

Stainless-steel - standard

null

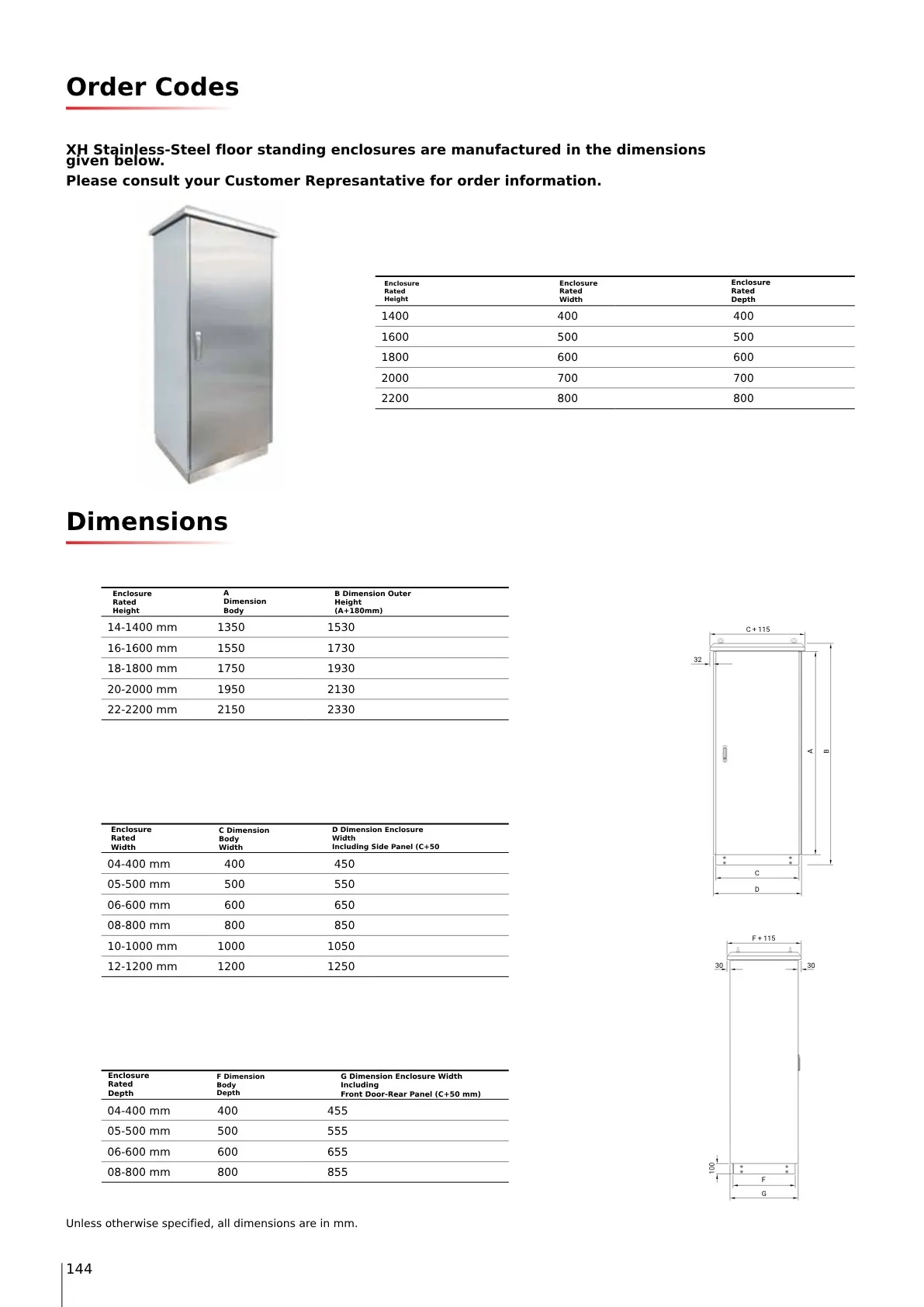

Order Codes

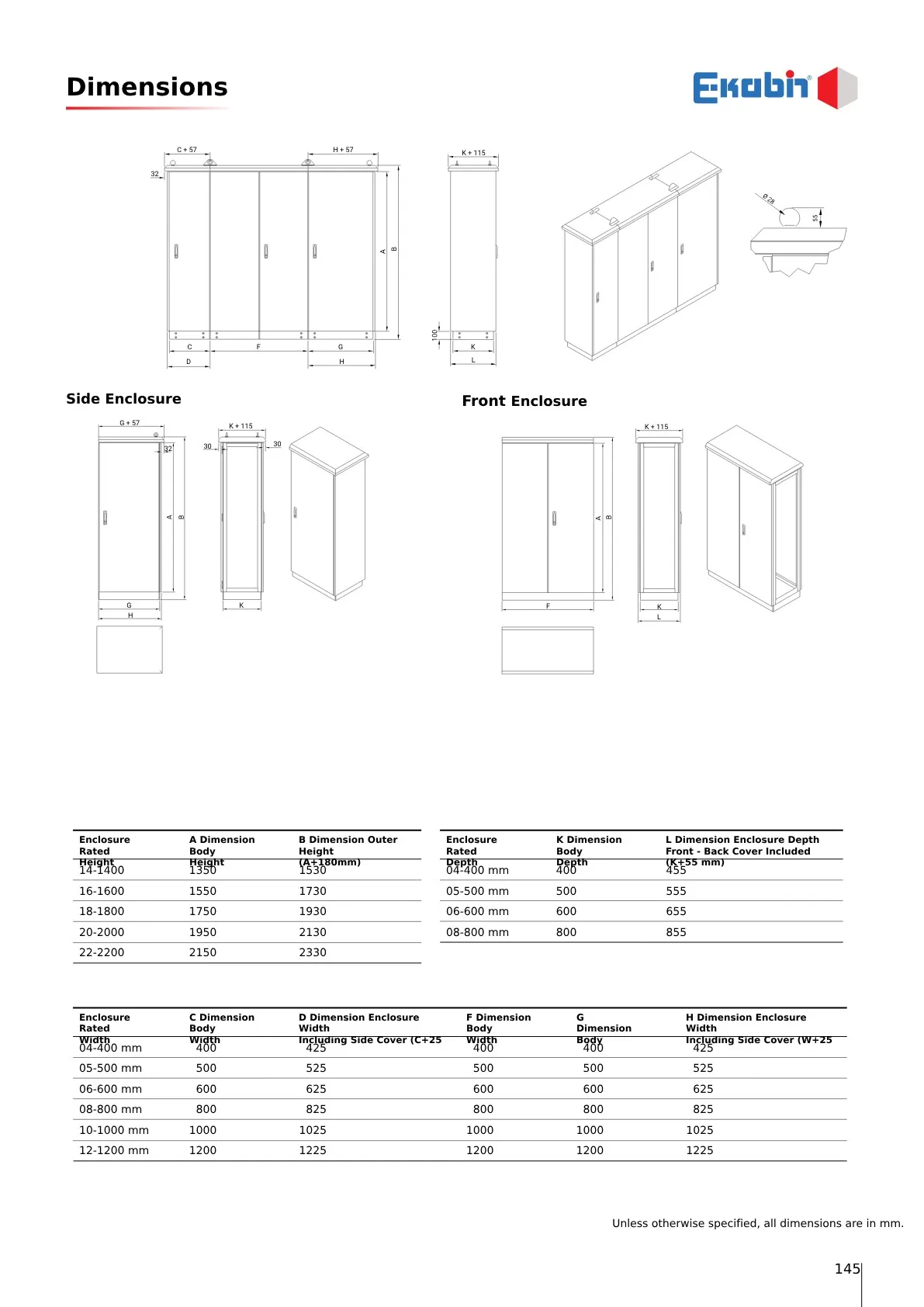

XH Stainless-Steel floor standing enclosures are manufactured in the dimensions given below. Please consult your Customer Represantative for order information.

Enclosure Rated Height

Enclosure Rated Width

Enclosure Rated Depth

1400

400

400

1600

500

500

1800

600

600

2000

700

700

2200

800

800
