HS Series

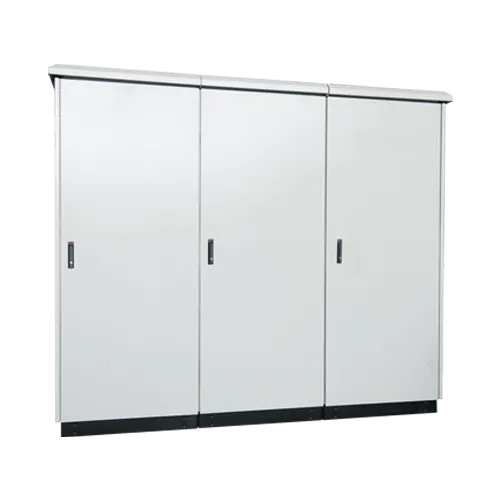

E-Kabin HS Series floor-standing electrical enclosures are designed as general purpose electrical equipment enclosures for outdoor applications. Depending on the door selection they can provide IP 55 or IP 41 protection degree. Their structure is modular, which enables expansion by combining side by side. All parts that come into contact with external enviroment are made of pre-galvanized sheet steel and coated first with primer paint then with electrostatic powder paint.

General Technicial SpecificationsOrder CodesDimensionsCatalog CertificatesOther Documents

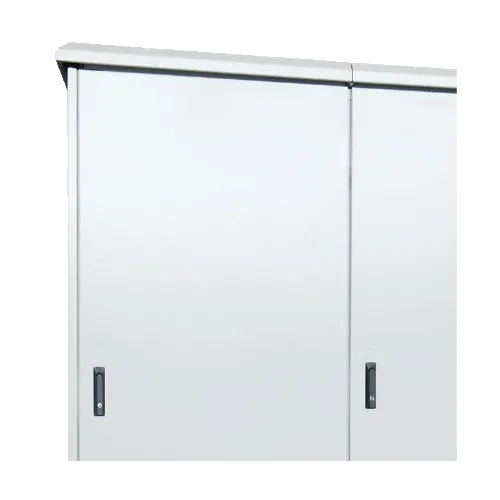

Modular design - side-by-side expandability

Thanks to modular design of framework and canopy, expanding side by side is possible to form large combinations. Moreover;

• Rear and front door usage

• It is possible to change the door opening direction.

Common interior accessories

Most of E-Kabin interior accessories such as mounting rails, mounting plates, cover plates etc. are designed to be suitable for use in all E-Kabin enclosures.

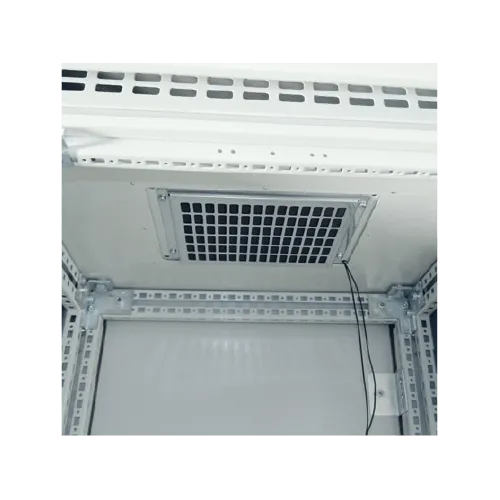

Under canopy fan unit

”Under Canopy Fan Unit” is accesable from inside the enclosure for easy service and maintenance.

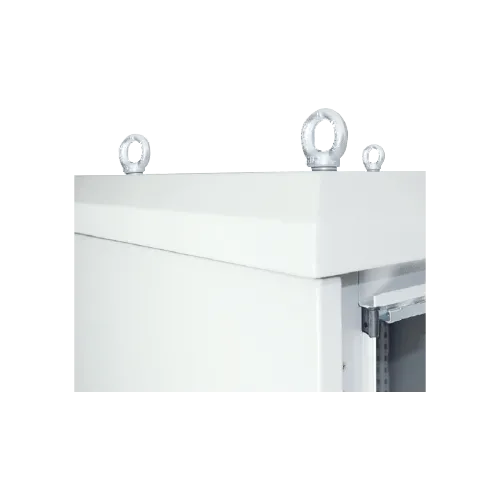

Lifting kit

The lifting kit is placed on the top of the canopy as standard. By the lifting kit, it is available to lift up and carry the fully loaded enclosure safely and easily.

Stackable plinth

Thanks to its modular plinth structure, plints can be mounted on top of each other to increase the enclosure height.

Stainless-steel lock accessory

Standard swinghandle lock made of metal with high chemical resistance can be replaced with optionally selectable AISI 316 grade stainless-steel lock if required.

Type of Mounting:	Floor-Standing
Modularity:	Modular
Application:	Outdoor
Protection Class:	IP55, IP41 depending on front door type
Paint:	High corrosion resistant paintaccording to ISO 12944-2
Colour:	Painted, Standard RAL 7035 (Grey Colour)
Environmental Class:	According to EN 60721 - 3 - 3 IE37
Standards:	IEC 61439-1, IEC 62208, IEC 60529, IEC 62262

Order Codes

HS outdoor free standing enclosures are manufactured in the dimensions given below. Please consult your Customer Represantative for order information.

Enclosure Rated Height (A)	Enclosure Rated Width (B)	Enclosure Rated Depth (C)
1800	600	600
2000	700	700
2200	800	800
	1000
	1200
