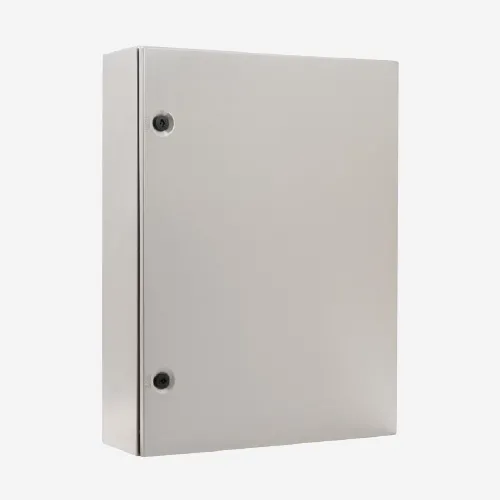

E-Kabin XM

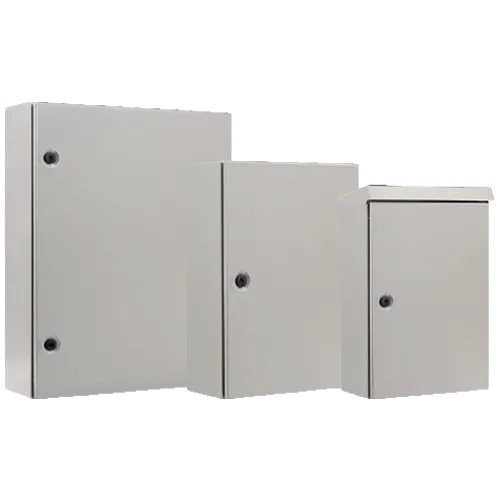

E-Kabin XM Series wall mounted stainless electrical enclosures are designed as general purpose electrical equipment enclosures for indoor and outdoor applications. They have monoblock body structure and provide IP66 protection degree. Standard production does not include painting process. However, custom-made production, varnished or painted in the desired RAL code is possible.

XM Series stainless-steel enclosures can be produced with AISI 304 or 316 grade raw material. Plastic lock is used in XM Series. Optionally, a lock made of 304 or 316 grade stainless-steel can also be used.

All E-Kabin interior accessories are designed to be suitable for use in stainless-steel enclosures as well.

While keeping standard product design unchanged, size modification, material thickness modification and cut-outs can be applied if requested.

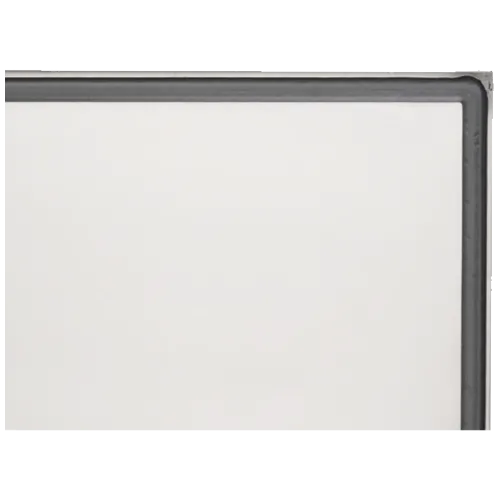

Polyurethane sealing gasket

Foam-in-place gasket, does not lose its elasticity over time and provides protection against dust and water.

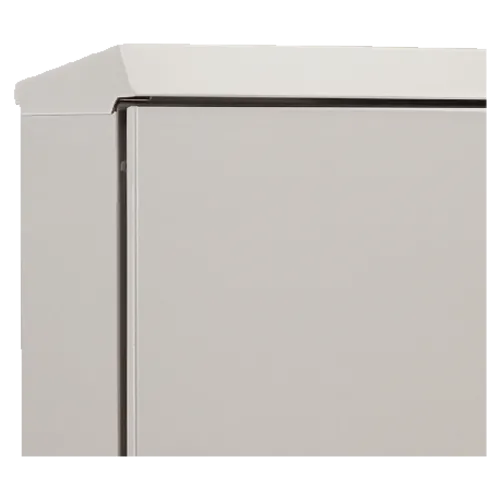

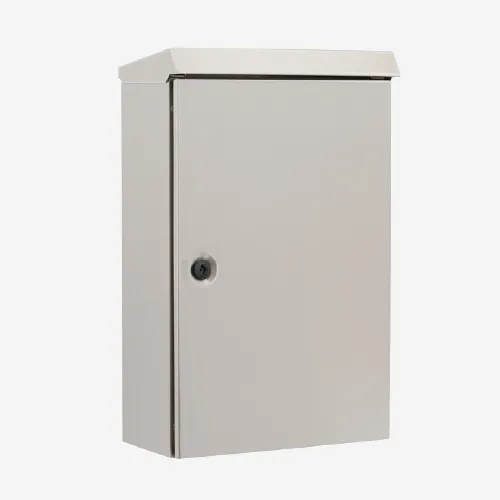

Asymmetrical canopy

It allows the use of bracket for wall mounting. Thanks to their reverse angle edge design above door threshold, rain water flows out of the enclosure.

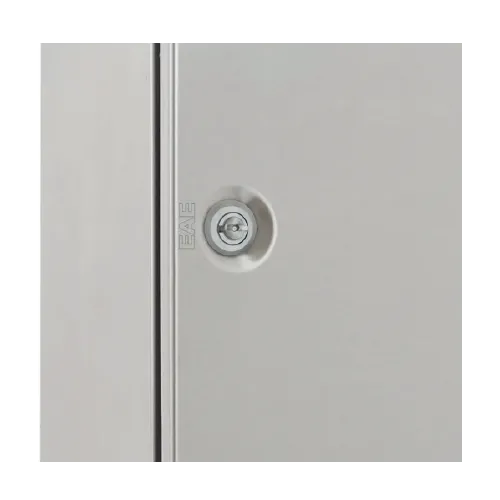

Optional Stainless-steel lock

Instead of plastic lock, which has high chemical resistance, optionally AISI 316 grade stainless-steel lock can be used. Mounted AISI 316 grade lock do not exceed the door level.

Possibility of custom size production

Non-standard, custom size manufacturing is possible.
For details, you can get information from your Customer Representative.

Stainless-steel hinge

Hinge body and pin made of Stainless-Steel material are used as standard.

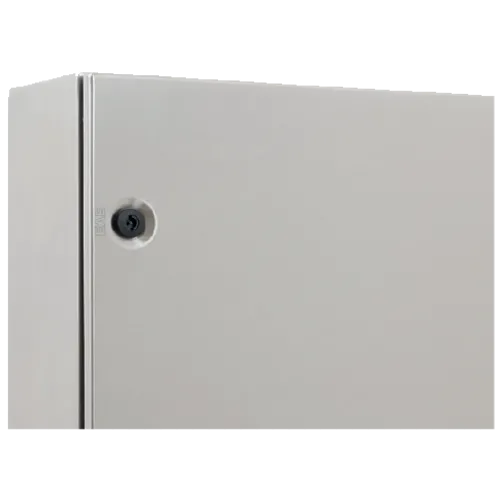

Possibility of custom-made cut-outs

Custom-made cut-out processing on the door and body is applicable.

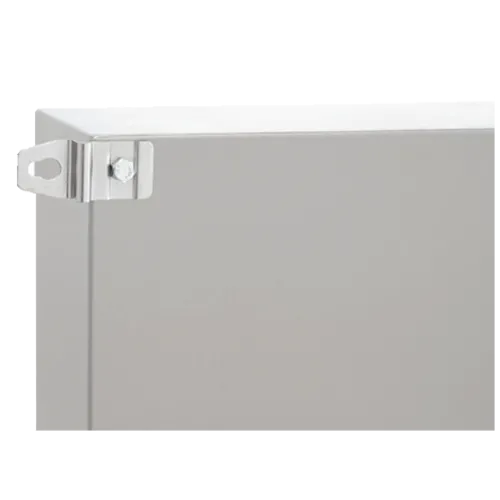

Optional stainless-steel bracket

With bracket set enclosure mounting on the wall can be done easily and quickly. Thanks to 90° swivel feature of the bracket, it’s positioning can be chosen either horizontally or vertically. Bracket set is not included in standard supply content, it should be ordered separately

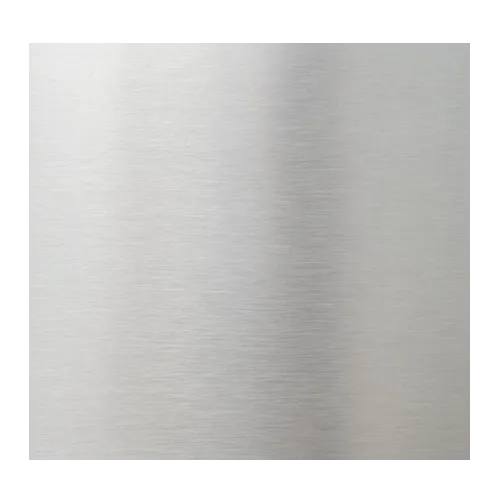

Clean surface texture

In the production of stainless-steel enclosures, the welding process is applied in a way that does not leave any traces. Thus, clean and smooth surface appearance has been provided for welded surfaces.

Type of Mounting Wall-Mounted
Modularity Monoblock
Application  Indoor, Outdoor
Protection Class IP 66
Material AISI 304 or 316 grade stainless-steel
Lock Set Plastic – standard
Stainless-steel – optional
Colour  Standard RAL 7035 (Grey Colour)
Environmental Class According to EN 60721 – 3 – 3 IE37
Standards IEC 61439-1, IEC 62208
IEC 60529, IEC 62262
  • General
  • Order Codes

Note: Standard lock is plastic. If stainless-steel lock is requested, please indicate it in your purchase order. Mounting plate is included in the standard supply content. Bracket set is not included in the standard supply content.
